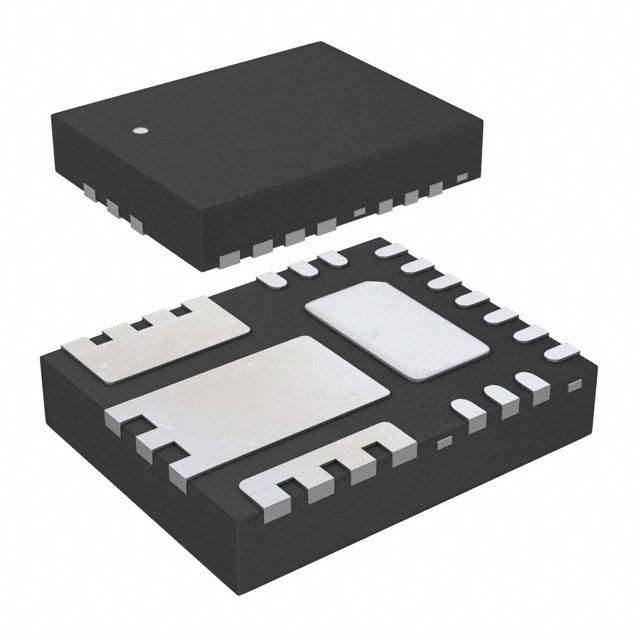

IR3863MTRPBF
ObsoleteInfineon Technologies
IC REG BUCK ADJ 6A 17PQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IR3863MTRPBF
ObsoleteInfineon Technologies
IC REG BUCK ADJ 6A 17PQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IR3863MTRPBF |
|---|---|
| Current - Output | 6 A |
| Frequency - Switching [Max] | 750 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 17-PowerVQFN |
| Supplier Device Package | 17-PQFN (4x5) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 21 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output (Max) [Max] | 12 V |
| Voltage - Output (Min/Fixed) [Min] | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IR3863 Series
Buck Switching Regulator IC Positive Adjustable 0.5V 1 Output 6A 17-PowerVQFN
