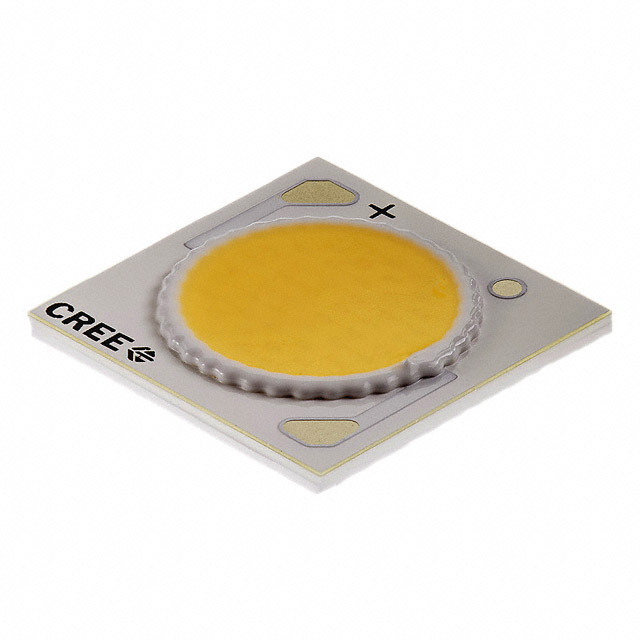

CXA1816-0000-000N0YK20E7

Active

Cree LED

XLAMP CXA LIGHT EMITTING DIODE WHITE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXA1816-0000-000N0YK20E7

Active

Cree LED

XLAMP CXA LIGHT EMITTING DIODE WHITE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXA1816-0000-000N0YK20E7

Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	93
Current - Max [Max]	900 mA
Current - Test	450 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	12 mm
Lumens/Watt @ Current - Test	75 lm/W
Luminous Flux @ Current/Temperature	1245 lm
Size / Dimension [x]	17.85 mm
Size / Dimension [y]	17.85 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	37 V

CXA1816 Series

...

Part	Current - Test	Current - Max [Max]	CRI (Color Rendering Index)	Type	Configuration	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Height [z]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Lens Type	Color	Temperature - Test	Viewing Angle	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	CCT (K)	CCT (K)
Cree LED CXA1816-0000-000N0YK20E7	450 mA	900 mA	93	Chip On Board (COB)	Square	12 mm	17.85 mm	17.85 mm	37 V	1.7 mm	1245 lm	75 lm/W	Flat	Warm White	85 °C	115 °
Cree LED CXA1816-0000-000N0YK40E7	450 mA	900 mA	93	Chip On Board (COB)	Square	12 mm	17.85 mm	17.85 mm	37 V	1.7 mm	1335 lm	80 lm/W	Flat	Warm White	85 °C	115 °	1290 lm	1380 lm
Cree LED CXA1816-0000-000N00N435H	450 mA	900 mA	70	Chip On Board (COB)	Square	12 mm	17.85 mm	17.85 mm	37 V	1.7 mm	1770 lm	106 lm/W	Flat	Warm White	85 °C	115 °	1710 lm	1830 lm	3500 K
Cree LED CXA1816-0000-000N00N40E6	450 mA	900 mA	80	Chip On Board (COB)	Square	12 mm	17.85 mm	17.85 mm	37 V	1.7 mm	1770 lm	106 lm/W	Flat	Warm White	85 °C	115 °	1710 lm	1830 lm	3500 K
Cree LED CXA1816-0000-000N0HQ250F	450 mA	900 mA	80	Chip On Board (COB)	Square	12 mm	17.85 mm	17.85 mm	37 V	1.7 mm	2180 lm	131 lm/W	Flat	Cool White	85 °C	115 °			5000 K
Cree LED CXA1816-0000-000N00P227F	450 mA	900 mA	80	Chip On Board (COB)	Square	12 mm	17.85 mm	17.85 mm	37 V	1.7 mm	1898 lm	114 lm/W	Flat	Warm White	85 °C	115 °	1830 lm	1965 lm	2700 K	4-Step MacAdam Ellipse
Cree LED CXA1816-0000-000N0HP257F	450 mA	900 mA	80	Chip On Board (COB)	Square	12 mm	17.85 mm	17.85 mm	37 V	1.7 mm	1898 lm	114 lm/W	Flat	Cool White	85 °C	115 °	1830 lm	1965 lm	5700 K
Cree LED CXA1816-0000-000N0HQ265F	450 mA	900 mA	80	Chip On Board (COB)	Square	12 mm	17.85 mm	17.85 mm	37 V	1.7 mm	2180 lm	131 lm/W	Flat	Cool White	85 °C	115 °			6500 K
Cree LED CXA1816-0000-000N0UN450H	450 mA	900 mA	90	Chip On Board (COB)	Square	12 mm	17.85 mm	17.85 mm	37 V	1.7 mm	1770 lm	106 lm/W	Flat	Cool White	85 °C	115 °	1710 lm	1830 lm	5000 K
Cree LED CXA1816-0000-000N00M427H	450 mA	900 mA	80	Chip On Board (COB)	Square	12 mm	17.85 mm	17.85 mm	37 V	1.7 mm	1538 lm	92 lm/W	Flat	Warm White	85 °C	115 °			2700 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 5.71
Newark	Each	100	$ 5.65
		250	$ 4.71
		500	$ 4.57

Description

General part information

CXA1816 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXA1816 White, Warm Square
