1991024

Active

Phoenix Contact

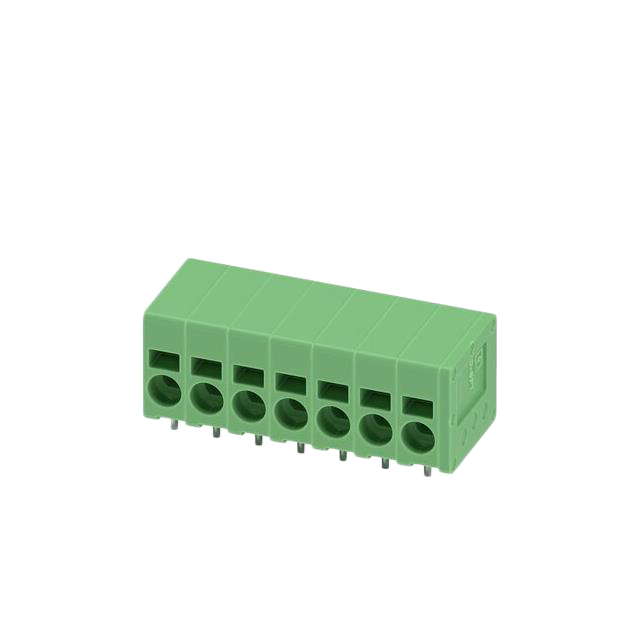

FIXED TERMINAL BLOCKS SPT 2.5/ 7-H-5.0 5MM 7P HORZ SPR

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS SPT 2.5/ 7-H-5.0 5MM 7P HORZ SPR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fixed Terminal Blocks SPT 2.5/ 7-H-5.0 5MM 7P HORZ SPR

Technical documentation and resources

Specification	1991024	SPT Series

Color	Green	Green
Current	20 A	10 - 20 A
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	5 mm	3.5 - 5 mm
Pitch [x]	0.197 in	0.138 - 0.197 in
Positions Per Level	7	1 - 12
Voltage	300 V	300 V
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	12 AWG	12 - 16 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp	Screwless - Spring Cage, Tension Clamp

Part	Mounting Type	Color	Pitch [x]	Pitch [x]	Positions Per Level	Wire Termination	Current	Mating Orientation	Wire Gauge [Min]	Wire Gauge [Max]	Housing Material	Voltage	Number of Levels
Phoenix Contact 1991079	Through Hole	Green	5 mm	0.197 in	12	Screwless - Spring Cage, Tension Clamp	20 A	Horizontal with Board	12 AWG	24 AWG	Polyamide (PA), Nylon	300 V	1
Phoenix Contact 1990766	Through Hole	Green	3.5 mm	0.138 in	5	Screwless - Spring Cage, Tension Clamp	10 A	Horizontal with Board	16 AWG	24 AWG	Polyamide (PA), Nylon	300 V	1
Phoenix Contact 1751066	Through Hole	Green			1	Screwless - Spring Cage, Tension Clamp	20 A	Horizontal with Board	12 AWG	24 AWG	Polyamide (PA), Nylon	300 V	1
Phoenix Contact 1991024	Through Hole	Green	5 mm	0.197 in	7	Screwless - Spring Cage, Tension Clamp	20 A	Horizontal with Board	12 AWG	24 AWG	Polyamide (PA), Nylon	300 V	1
