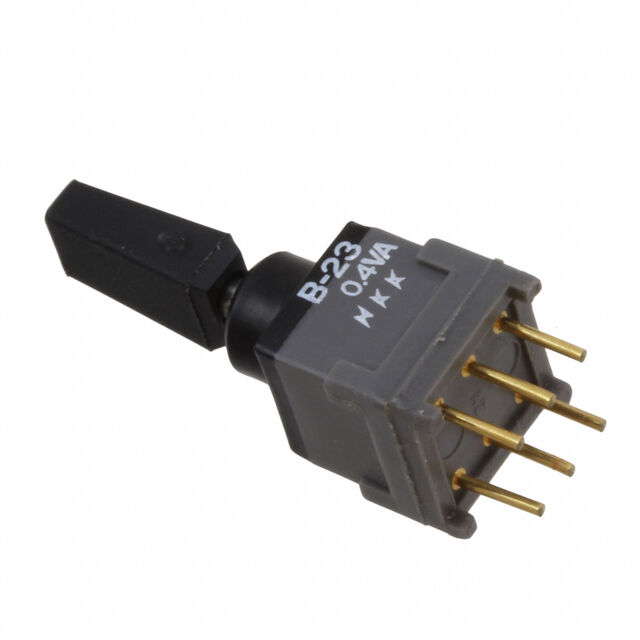

B23KP-AA

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Actuator Type	Bushing Thread	Electrical Life	Features	Current Rating (Amps)	Voltage Rating - DC	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Voltage Rating - AC	Actuator Length [x]	Illumination	Switch Function	Circuit
NKK Switches B23KP-AA	Through Hole	Snap On Paddle	Unthreaded	50000 Cycles	Black Actuator	0.4 VA	28 V	PC Pin	-30 ░C	85 °C	Brass Nickel Plated	28 V	9.4 mm	Non-Illuminated	On-Off-On	DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Through Hole
