Specification	10118615-526003LF

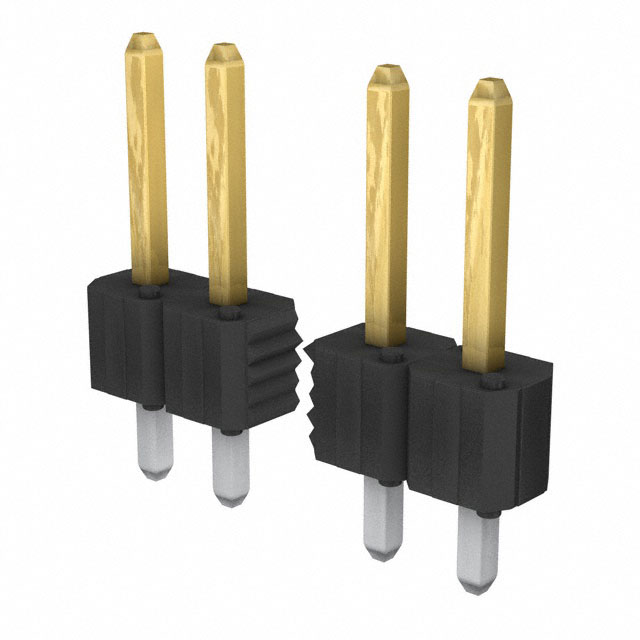

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.335 in
Contact Length - Post	0.12 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Insulation Height	0.1 in
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-65 °C
Overall Contact Length	0.555 in
Pitch - Mating	0.1 in
Shrouding	Unshrouded
Style	Board
Termination	Solder

10118615 Series

Part	Number of Positions	Overall Contact Length	Mounting Type	Contact Length - Mating	Current Rating	Contact Finish - Mating	Termination	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Contact Material	Number of Positions Loaded	Contact Shape	Insulation Height	Contact Finish Thickness - Mating	Shrouding	Fastening Type	Insulation Material	Style	Contact Length - Post	Pitch - Mating	Connector Type	Contact Finish Thickness - Post	Insulation Color	Material Flammability Rating	Contact Finish - Post
Amphenol ICC (FCI) 10118615-208008LF	8	0.53 in	Through Hole	0.295 in	3 A	Gold GXT™	Solder	Male Pin	-65 °C	130 °C	1	Copper Alloy	All	Square	0.1 in	15 µin	Unshrouded	Push-Pull	Thermoplastic	Board	0.135 in	0.1 in	Breakaway Header
Amphenol ICC (FCI) 10118615-202021LF	2	0.425 in	Through Hole	0.23 in	3 A	Gold GXT™	Solder	Male Pin	-65 °C	130 °C	1	Copper Alloy	All	Square	0.1 in	15 µin	Unshrouded	Push-Pull	Thermoplastic	Board	0.095 in	0.1 in	Breakaway Header
Amphenol ICC (FCI) 10118615-224008LF	24 pos	0.53 in	Through Hole	0.295 in	3 A	Gold GXT™	Solder	Male Pin	-65 °C	130 °C	1	Copper Alloy	All	Square	0.1 in	15 µin	Unshrouded	Push-Pull	Thermoplastic	Board	0.135 in	0.1 in	Breakaway Header
Amphenol ICC (FCI) 10118615-217007LF	17	0.474 in	Through Hole	0.295 in	3 A	Gold GXT™	Solder	Male Pin	-65 °C	130 °C	1	Copper Alloy	All	Square	0.1 in	15 µin	Unshrouded	Push-Pull	Thermoplastic	Board	0.079 in	0.1 in	Breakaway Header
Amphenol ICC (FCI) 10118615-208001LF	8	0.548 in	Through Hole	0.318 in	3 A	Gold GXT™	Solder	Male Pin	-65 °C	130 °C	1	Copper Alloy	All	Square	0.1 in	15 µin	Unshrouded	Push-Pull	Thermoplastic	Board	0.13 in	0.1 in	Breakaway Header
Amphenol ICC (FCI) 10118615-517002LF	17	1.095 in	Through Hole	0.23 in	3 A	Gold	Solder	Male Pin	-65 °C	125 °C	1	Copper Alloy	All	Square	0.1 in	3 µin	Unshrouded	Push-Pull	Thermoplastic	Board	0.765 in	0.1 in	Breakaway Header	30 µin	Black	UL94 V-0	Gold
Amphenol ICC (FCI) 10118615-936021LF	36	0.425 in	Through Hole	0.23 in	3 A	Gold	Solder	Male Pin	-65 °C	130 °C	1	Copper Alloy	All	Square	0.1 in	50 µin	Unshrouded	Push-Pull	Thermoplastic	Board	0.095 in	0.1 in	Breakaway Header
Amphenol ICC (FCI) 10118615-436022	36	0.704 in	Through Hole	0.136 in	3 A	Tin-Lead	Solder	Male Pin	-65 °C	130 °C	1	Copper Alloy	All	Square	0.1 in	20 Ąin	Unshrouded	Push-Pull	Thermoplastic	Board	0.469 in	0.1 in	Breakaway Header
Amphenol ICC (FCI) 10118615-107025LF	7	0.45 in	Through Hole	0.23 in	3 A	Gold GXT™	Solder	Male Pin	-65 °C	130 °C	1	Copper Alloy	All	Square	0.1 in	30 µin	Unshrouded	Push-Pull	Thermoplastic	Board	0.12 in	0.1 in	Breakaway Header
Amphenol ICC (FCI) 10118615-836028LF	36	0.813 in	Through Hole	0.23 in	3 A	Gold GXT™	Solder	Male Pin	-65 °C	125 °C	1	Copper Alloy	All	Square	0.1 in	3 µin	Unshrouded	Push-Pull	Thermoplastic	Board	0.483 in	0.1 in	Breakaway Header	30 µin	Black	UL94 V-0	Gold GXT™
