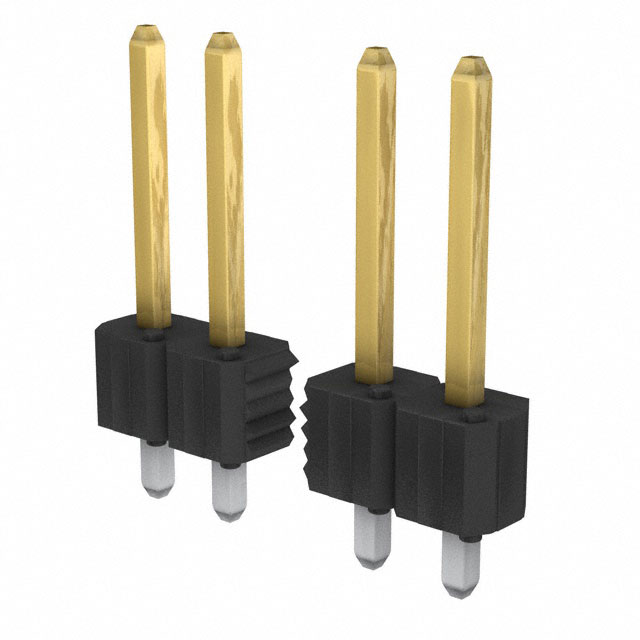

10118615-217007LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 17POS 2.54MM

Deep-Dive with AI

Documentsbus-12-114Other Related Documents Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10118615-217007LF

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post	0.079 "
Contact Length - Post	2 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	12.04 mm
Overall Contact Length	0.474 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

10118615 Series

Part	Insulation Material	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions	Termination	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Shape	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Shrouding	Contact Finish - Mating	Contact Material	Number of Rows	Number of Positions Loaded	Contact Type	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Insulation Color	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post
Amphenol ICC (FCI) 10118615-208008LF	Thermoplastic	Push-Pull	0.1 in	2.54 mm	7.49 mm	0.295 in	8	Solder	3 A	15 µin	0.38 µm	13.46 mm	0.53 in	Square	Through Hole	-65 ░C	130 °C	0.1 in	2.54 mm	0.135 in	3.43 mm	Breakaway Header	Unshrouded	Gold or Gold GXT™	Copper Alloy	1	All	Male Pin
Amphenol ICC (FCI) 10118615-202021LF	Thermoplastic	Push-Pull	0.1 in	2.54 mm	5.84 mm		2	Solder	3 A	15 µin	0.38 µm			Square	Through Hole	-65 ░C	130 °C	0.1 in	2.54 mm	0.095 in	2.41 mm	Breakaway Header	Unshrouded	Gold or Gold GXT™	Copper Alloy	1	All	Male Pin	0.23 in
Amphenol ICC (FCI) 10118615-217007LF	Thermoplastic	Push-Pull	0.1 in	2.54 mm	7.49 mm	0.295 in		Solder	3 A	15 µin	0.38 µm	12.04 mm	0.474 in	Square	Through Hole	-65 ░C	130 °C	0.1 in	2.54 mm			Breakaway Header	Unshrouded	Gold or Gold GXT™	Copper Alloy	1	All	Male Pin		0.079 "	2 mm
Amphenol ICC (FCI) 10118615-208001LF	Thermoplastic	Push-Pull	0.1 in	2.54 mm			8	Solder	3 A	15 µin	0.38 µm	13.92 mm	0.548 "	Square	Through Hole	-65 ░C	130 °C	0.1 in	2.54 mm			Breakaway Header	Unshrouded	Gold or Gold GXT™	Copper Alloy	1	All	Male Pin	0.318 "	0.13 in	3.3 mm	8.08 mm
Amphenol ICC (FCI) 10118615-517002LF	Thermoplastic	Push-Pull	0.1 in	2.54 mm	5.84 mm			Solder	3 A	3 µin	0.076 µm	27.81 mm	1.095 in	Square	Through Hole	-65 ░C	125 °C	0.1 in	2.54 mm			Breakaway Header	Unshrouded	Gold	Copper Alloy	1	All	Male Pin	0.23 in	0.765 in	19.43 mm		Black	UL94 V-0	30 µin	0.76 µm	Gold
Amphenol ICC (FCI) 10118615-436022	Thermoplastic	Push-Pull	0.1 in	2.54 mm	3.45 mm	0.136 in	36	Solder	3 A	20 µin	0.51 µm	17.88 mm	0.704 "	Square	Through Hole	-65 ░C	130 °C	0.1 in	2.54 mm			Breakaway Header	Unshrouded	Tin-Lead	Copper Alloy	1	All	Male Pin		0.469 "	11.91 mm
Amphenol ICC (FCI) 10118615-836028LF	Thermoplastic	Push-Pull	0.1 in	2.54 mm	5.84 mm		36	Solder	3 A	3 µin	0.076 µm	20.65 mm	0.813 in	Square	Through Hole	-65 ░C	125 °C	0.1 in	2.54 mm			Breakaway Header	Unshrouded	Gold GXT™	Copper Alloy	1	All	Male Pin	0.23 in	0.483 in	12.27 mm		Black	UL94 V-0	30 µin	0.76 µm	Gold GXT™
Amphenol ICC (FCI) 10118615-205004LF	Thermoplastic	Push-Pull	0.1 in	2.54 mm	3.86 mm	0.152 in		Solder	3 A	15 µin	0.38 µm	8.89 mm	0.35 in	Square	Through Hole	-65 ░C	130 °C	0.1 in	2.54 mm			Breakaway Header	Unshrouded	Gold or Gold GXT™	Copper Alloy	1	All	Male Pin		0.098 in	2.5 mm
Amphenol ICC (FCI) 10118615-520002LF	Thermoplastic	Push-Pull	0.1 in	2.54 mm	5.84 mm		20	Solder	3 A	30 Áin	0.76 Ám	27.81 mm	1.095 in	Square	Through Hole	-65 ░C	130 °C	0.1 in	2.54 mm			Breakaway Header	Unshrouded	Gold	Copper Alloy	1	All	Male Pin	0.23 in	0.765 in	19.43 mm
Amphenol ICC (FCI) 10118615-503003LF	Thermoplastic	Push-Pull	0.1 in	2.54 mm	8.51 mm	0.335 in		Solder	3 A	30 Áin	0.76 Ám	14.1 mm	0.555 in	Square	Through Hole	-65 ░C	130 °C	0.1 in	2.54 mm	0.12 in	3.05 mm	Breakaway Header	Unshrouded	Gold	Copper Alloy	1	All	Male Pin
