3SB22031AC01

Active

Siemens

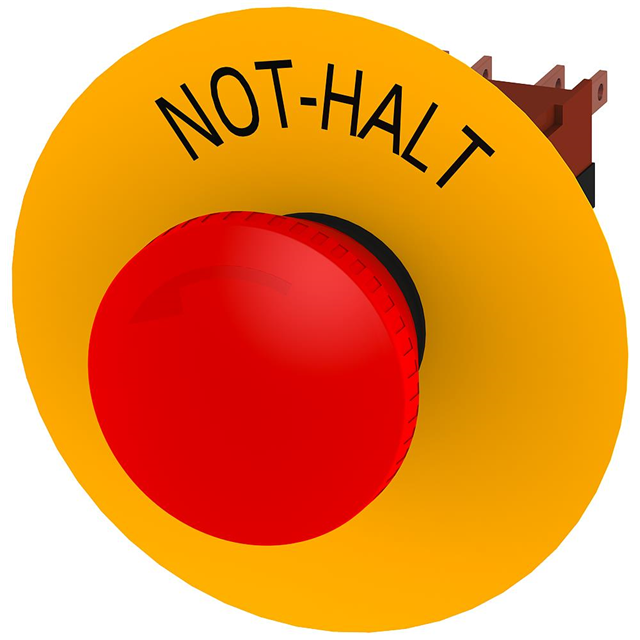

PUSHBUTTON,MAINTAINED,TW REL,RED

Search across all available documentation for this part.

Active

Siemens

PUSHBUTTON,MAINTAINED,TW REL,RED

Technical Specifications

Parameters and characteristics for this part

Specification	3SB22031AC01

Actuator Type	Mushroom, Button, Round
Circuit	SPST-NC
Color - Actuator/Cap	Red
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Off
Termination Style	Quick Connect
Type	Standard
Voltage Rating - AC	110 V
Voltage Rating - DC	24 V

Part	Color - Actuator/Cap	Type	Voltage Rating - AC	Termination Style	Panel Cutout Dimensions [diameter]	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Voltage Rating - DC	Switch Function	Mechanical Life	Actuator Type	Mounting Type
Siemens 3SB22031AC01	Red	Standard	110 V	Quick Connect	16 mm	SPST-NC	70 °C	-25 °C	IP65 - Dust Tight Water Resistant	24 V	On-Off	10000000 Cycles	Button Mushroom Round	Panel Mount Front
Siemens 3SB22030AC01	Red	Standard	110 V	Quick Connect	16 mm	SPST-NC	70 °C	-25 °C	IP65 - Dust Tight Water Resistant	24 V	On-Mom	10000000 Cycles	Button Flush Round	Panel Mount Front
Siemens 3SB22030LC01	Red	Standard	110 V	Quick Connect	16 mm	SPST-NC	70 °C	-25 °C	IP65 - Dust Tight Water Resistant	24 V	On-Mom	10000000 Cycles	Button Round	Panel Mount Front
Siemens 3SB22030AB01	Black	Standard	110 V	Quick Connect	16 mm	SPST-NC	70 °C	-25 °C	IP65 - Dust Tight Water Resistant	24 V	On-Mom	10000000 Cycles	Button Flush Round	Panel Mount Front

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 114.80

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Front
