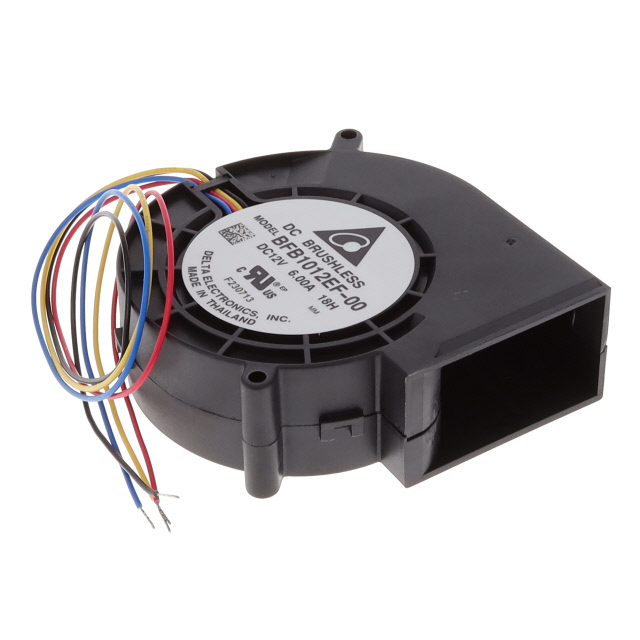

BFB1012EF-0018H

Active

Delta Electronics

DC BLOWER CENTRIFUGAL BALL BEARING 12V 10.8V TO 12.6V 56.08CFM 69DB 96.6 X 94.3 X 32.9MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans, Blowers CSA Cert +2

BFB1012EF-0018H

Active

Delta Electronics

DC BLOWER CENTRIFUGAL BALL BEARING 12V 10.8V TO 12.6V 56.08CFM 69DB 96.6 X 94.3 X 32.9MM

Deep-Dive with AI

DocumentsDatasheet Fans, Blowers CSA Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BFB1012EF-0018H

Air Flow	1.57 mł/min
Air Flow	56.1 CFM
Bearing Type	Ball
Current Rating (Amps)	5 A
Fan Type	Blower
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	60 W
RPM	7500 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	96.6 mm
Size / Dimension [z]	94.3 mm
Static Pressure	1719.5 Pa
Static Pressure	6.903 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight	180.08 g
Weight	0.397 lb
Width [y]	32.9 mm

BFB1012 Series

Part	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	RPM	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Noise	Bearing Type	Material - Frame	Static Pressure	Static Pressure	Power (Watts)	Voltage - Rated	Lifetime @ Temp.	Termination	Features	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Fan Type	Weight	Weight	Width [y]	Air Flow	Air Flow	Size / Dimension [y]	Approval Agency	Width [x]	Ingress Protection
Delta Electronics BFB1012EH-C18J	Rectangular/Rounded	94.3 mm	96.6 mm	5800 RPM	1.97 A	10.8 VDC	14 V	62 dB(A)	Ball	Plastic	3.694 in H2O	920.1 Pa	23.64 W	12 VDC	35 °C 90000 Hrs	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)	70 °C	70 °C	-10 °C	-10 °C	Plastic	Blower	180.08 g	0.397 lb	32.9 mm	45.5 CFM	1.27 mł/min
Delta Electronics BFB1012M-A			97.2 mm	3200 RPM	0.55 A	4 VDC	13.2 VDC	52.5 dB(A)	Ball	Plastic	0.893 in H2O	222.4 Pa	6.6 W	12 VDC	50000 Hrs	2 Wire Leads		60 °C	60 °C	-10 °C	-10 °C	Plastic	Blower	166.01 g	0.366 lb	33 mm	22.6 CFM	0.633 mł/min	94.4 mm	CE CSA UL VDE
Delta Electronics BFB1012UH-BA40ZYD	Rectangular/Rounded	94.3 mm	96.6 mm	7000 RPM	2.15 A	12 VDC	16.8 VDC	68 dB	Ball	Plastic	4.764 in H2O	1186.7 Pa	30.53 W	14.2 VDC	50000 Hrs	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)	50 °C	50 °C	-10 °C	-10 °C	Plastic	Blower	175.09 g	0.386 lb		37 CFM	1.04 mł/min		CE CSA UL VDE	24.9 mm
Delta Electronics BFB1012HH-A			97.2 mm	4000 RPM	1.25 A	7 V	13.2 VDC	57 dB	Ball	Plastic	1.564 in H2O	389.6 Pa	15 W	12 VDC	50000 Hrs	2 Wire Leads		60 °C	60 °C	-10 °C	-10 °C	Plastic	Blower	180.08 g	0.397 lb	33 mm	34.3 CFM	0.96 m³/min	94.4 mm	CE CSA UL VDE
Delta Electronics BFB1012HH-TP48			97.2 mm	3200 RPM	0.69 A	10.8 VDC	13.2 VDC	53.5 dB	Ball	Plastic	0.947 in H2O	235.9 Pa	8.28 W	12 VDC	50000 Hrs	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)	60 °C	60 °C	-10 °C	-10 °C	Plastic	Blower	180.08 g	0.397 lb	33 mm	28.3 CFM	0.792 m³/min	94.4 mm	CE CSA UL VDE
Delta Electronics BFB1012EH-AF00			97.2 mm	5300 RPM	2.45 A	7 V	12.6 VDC	64 dB(A)	Ball	Plastic			29.4 W	12 VDC	50000 Hrs	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	60 °C	60 °C	-10 °C	-10 °C	Plastic	Blower	180.08 g	0.397 lb	33 mm	46 CFM	1.29 mł/min	94.4 mm	CE CSA UL VDE
Delta Electronics BFB1012L-TA5R				2700 RPM	370 mA	3.5 VDC	13.2 VDC	49.5 dB	Ball	Plastic	0.585 in H2O	145.7 Pa	4.4 W	12 VDC	50000 Hrs	3 Wire Leads	Locked Rotor Sensor	60 °C	60 °C	-10 °C	-10 °C	Plastic	Blower	180.08 g	0.397 lb	33 mm	23.2 CFM	0.65 m³/min		CE CSA UL VDE		IP55 - Dust Protected Water Resistant
Delta Electronics BFB1012EF-0018H	Rectangular/Rounded	94.3 mm	96.6 mm	7500 RPM	5 A	10.8 VDC	12.6 VDC		Ball	Plastic	6.903 in H2O	1719.5 Pa	60 W	12 VDC	50000 Hrs	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)	70 °C	70 °C	-10 °C	-10 °C	Plastic	Blower	180.08 g	0.397 lb	32.9 mm	56.1 CFM	1.57 mł/min
Delta Electronics BFB1012VH-AF00			97.2 mm	4500 RPM	1.5 A	7 V	13.2 VDC	60 dB(A)	Ball	Plastic	1.952 in H2O	486.2 Pa	18 W	12 VDC	50000 Hrs	3 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)	60 °C	60 °C	-10 °C	-10 °C	Plastic	Blower	180.08 g	0.397 lb	33 mm	38 CFM	1.06 mł/min	94.4 mm	CE CSA UL VDE
Delta Electronics BFB1012L-AR00				2700 RPM	370 mA	3.5 VDC	13.2 VDC	49.5 dB	Ball	Plastic	0.585 in H2O	145.7 Pa	4.4 W	12 VDC	50000 Hrs	3 Wire Leads	Locked Rotor Sensor	60 °C	60 °C	-10 °C	-10 °C	Plastic	Blower	180.08 g	0.397 lb	33 mm	23.2 CFM	0.65 m³/min		CE CSA UL VDE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 33.70
		10	$ 31.35
		25	$ 28.22
		56	$ 25.86
		112	$ 24.30
		280	$ 21.16

Description

General part information

BFB1012 Series

Fan Blower 12VDC Rectangular/Rounded - 96.6mm L x 94.3mm H Ball 56.1 CFM (1.57m³/min) 4 Wire Leads
