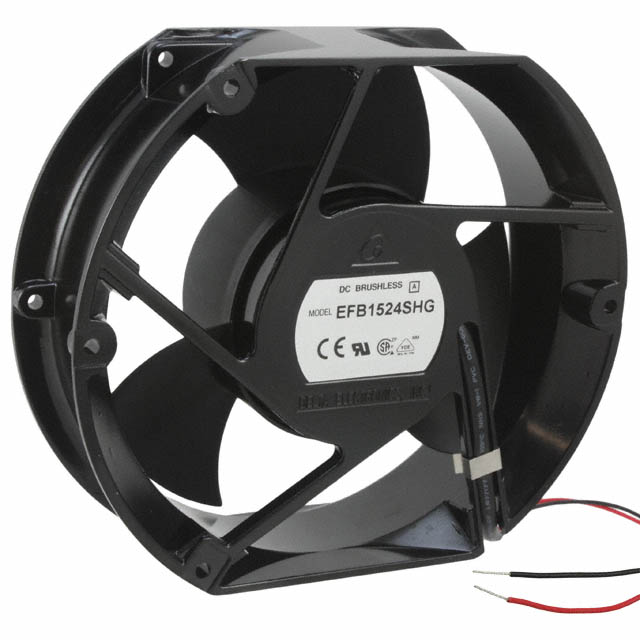

EFB1524SHG

Active

Delta Electronics

DC FAN BALL BEARING 24V 1.17A 28.08W 4300RPM 325CFM 63DB FLANGE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Datasheet +2

EFB1524SHG

Active

Delta Electronics

DC FAN BALL BEARING 24V 1.17A 28.08W 4300RPM 325CFM 63DB FLANGE MOUNT

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFB1524SHG

Air Flow	9.1 m³/min
Air Flow	325 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.17 A
Fan Type	Tubeaxial
Lifetime @ Temp.	80000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	63 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	28.08 W
RPM	4300 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	269.8 Pa
Static Pressure	1.083 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	12 VDC
Weight	861.8 g
Weight	1.9 lbs
Width [y]	2 "

EFB1524 Series

Part	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	RPM	Voltage - Rated	Features	Material - Blade	Termination	Weight	Weight	Static Pressure	Static Pressure	Fan Type	Bearing Type	Width [y]	Power (Watts)	Material - Frame	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Approval Agency	Ingress Protection
Delta Electronics EFB1524SHG-F00	9.1 m³/min	325 CFM	12 VDC	28 VDC	1.17 A	Rectangular/Rounded	150 mm	172 mm	4300 RPM	24 VDC	Locked Rotor Protection Speed Sensor (Tach)	Plastic	3 Wire Leads	861.8 g	1.9 lbs	269.8 Pa	1.083 in H2O	Tubeaxial	Ball	2 "	28.08 W	Aluminum	80000 Hrs	70 °C	70 °C	-10 °C	-10 °C	63 dB	CE CSA UL VDE
Delta Electronics EFB1524VHG-EP	8.46 m³/min	302.3 CFM			1.02 A	Rectangular/Rounded	150 mm	172 mm	4000 RPM	24 VDC	GR-487 (Salt Fog Protection) Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	4 Wire Leads	861.8 g	1.9 lbs	233.4 Pa	0.937 in H2O	Tubeaxial	Ball	2 "	24.48 W	Aluminum	80000 Hrs	70 °C	70 °C	-10 °C	-10 °C	60 dB(A)	CE CSA UL VDE	IP56 - Dust Protected Water Resistant
Delta Electronics EFB1524HHG	7.83 m³/min	279.7 CFM	12 VDC	28 VDC	770 mA	Rectangular/Rounded	150 mm	172 mm	3700 RPM	24 VDC		Plastic	2 Wire Leads	861.8 g	1.9 lbs			Tubeaxial	Ball	2 "	18.48 W	Aluminum	80000 Hrs	70 °C	70 °C	-10 °C	-10 °C	57.5 dB	CE CSA UL VDE
Delta Electronics EFB1524SHG	9.1 m³/min	325 CFM	12 VDC	28 VDC	1.17 A	Rectangular/Rounded	150 mm	172 mm	4300 RPM	24 VDC		Plastic	2 Wire Leads	861.8 g	1.9 lbs	269.8 Pa	1.083 in H2O	Tubeaxial	Ball	2 "	28.08 W	Aluminum	80000 Hrs	70 °C	70 °C	-10 °C	-10 °C	63 dB	CE CSA UL VDE
Delta Electronics EFB1524VHG	8.46 m³/min	302.3 CFM	12 VDC	28 VDC	970 mA	Rectangular/Rounded	150 mm	172 mm	4000 RPM	24 VDC		Plastic	2 Wire Leads	861.8 g	1.9 lbs	233.4 Pa	0.937 in H2O	Tubeaxial	Ball	2 "	23.28 W	Aluminum	80000 Hrs	70 °C	70 °C	-10 °C	-10 °C	60 dB(A)	CE CSA UL VDE
Delta Electronics EFB1524VHG-R00

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 79.91
		10	$ 65.50
		25	$ 60.50
		50	$ 56.96
		100	$ 53.63

Description

General part information

EFB1524 Series

Fan Tubeaxial 24VDC Rectangular/Rounded - 172mm L x 150mm H Ball 325.0 CFM (9.10m³/min) 2 Wire Leads
