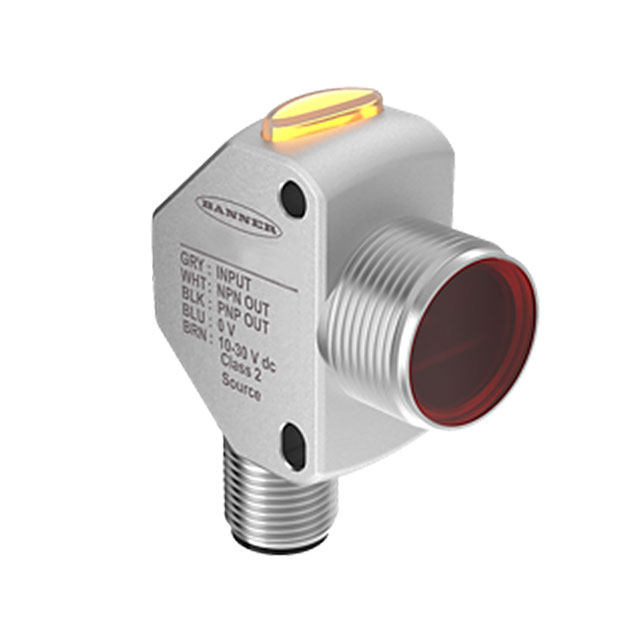

Q3XTBLD-Q8
ActiveBANNER ENGINEERING
CONTRAST SENSOR, LASER, Q3X SERIES, 300 MM, BIPOLAR, NPN / PNP, M12 CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
Q3XTBLD-Q8
ActiveBANNER ENGINEERING
CONTRAST SENSOR, LASER, Q3X SERIES, 300 MM, BIPOLAR, NPN / PNP, M12 CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q3XTBLD-Q8 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector |
| Ingress Protection | IEC IP68, IEC IP67, IEC IP69K |
| Light Source | LED |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Output Configuration | NPN/PNP - Dark-ON/Light-ON |
| Response Time | 250 µs |
| Sensing Distance | 11.811 in |
| Sensing Distance | 300 mm |
| Sensing Method | Diffuse, Background Suppression |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Q3XTBLD Series
Q3XTBLD-Q8 is a Q3X series laser contrast sensor. The versatile, rugged laser contrast sensor provides reliable, high-speed detection and fixed background suppression model allows for contrast detection in a fixed range while ignoring a background.
