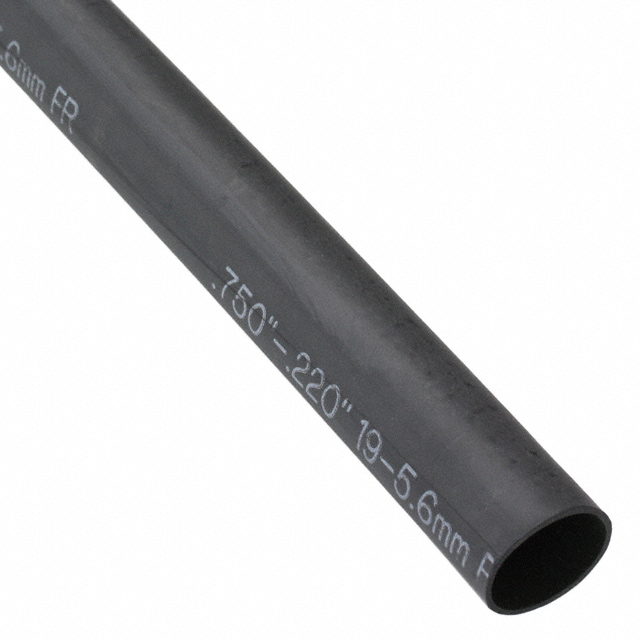

SST-48-07/FR/97

Active

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING ST IRRADIATED MODIFIED POLYOLEFIN BLACK THICK PIECE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Harnessing Customer Specification Report +4

SST-48-07/FR/97

Active

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING ST IRRADIATED MODIFIED POLYOLEFIN BLACK THICK PIECE

Deep-Dive with AI

DocumentsDatasheet Harnessing Customer Specification Report +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SST-48-07/FR/97

Color	Black
Features	Adhesive Lined, Moisture-Proof, Fluid Resistant, Strain Resistant, Flame Retardant, Abrasion Resistant
Inner Diameter - Recovered [diameter]	0.22 in
Inner Diameter - Recovered [diameter]	5.59 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.095 in
Recovered Wall Thickness	2.41 mm
Shelf Life	36 Months
Shrink Temperature	90 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Type	Tubing, Semi Rigid

RAYCHEM SST-SR Series

Part	Shelf Life	Recovered Wall Thickness	Recovered Wall Thickness	Length	Length	Length	Features	Shrink Temperature	Type	Operating Temperature [Min]	Operating Temperature [Max]	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Color	Length	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Inner Diameter - Recovered	Inner Diameter - Recovered
TE Connectivity Raychem Cable Protection CB5412-000	144 Months	0.095 in	2.41 mm	152.4 mm	6 "	0.5 '	Abrasion Resistant Adhesive Lined Fluid Resistant Moisture-Proof Strain Resistant	90 °C	Tubing Semi Rigid	-55 °C	110 °C	Polyolefin (PO) Irradiated	0.22 in	5.59 mm	1	3	Red
TE Connectivity Raychem Cable Protection CB5422-000	144 Months	0.095 in	2.41 mm	228.6 mm	9 in		Abrasion Resistant Adhesive Lined Fluid Resistant Moisture-Proof Strain Resistant	90 °C	Tubing Semi Rigid	-55 °C	110 °C	Polyolefin (PO) Irradiated	0.22 in	5.59 mm	1	3	Black	0.75 ft
TE Connectivity Raychem Cable Protection SST-6-07/FR/97	36 Months	0.095 in	2.41 mm	152.4 mm	6 "	0.5 '	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Moisture-Proof Strain Resistant	90 °C	Tubing Semi Rigid	-55 °C	110 °C	Polyolefin (PO) Irradiated	0.22 in	5.59 mm	1	3	Black
TE Connectivity Raychem Cable Protection CB5443-000	144 Months	0.12 in	3.05 mm				Flame Retardant Fluid Resistant	70 °C	Tubing Semi Rigid	-55 °C	105 ░C	Polyolefin (PO) Irradiated Halogen Free	0.75 "	19.05 mm	1	3	Black		1.22 m	4 ft	50.8 mm	2 in
TE Connectivity Raychem Cable Protection CB5442-000	144 Months	0.12 in	3.05 mm	7.6 m			Flame Retardant Fluid Resistant	70 °C	Tubing Semi Rigid	-55 °C	105 ░C	Polyolefin (PO) Irradiated Halogen Free	0.75 "	19.05 mm	1	3	Black	25 ft			50.8 mm	2 in
TE Connectivity Raychem Cable Protection SST-12-13/226	144 Months	0.12 in	3.05 mm				Abrasion Resistant Adhesive Lined Fluid Resistant Moisture-Proof Strain Resistant	90 °C	Tubing Semi Rigid	-55 °C	110 °C	Polyolefin (PO) Irradiated	0.374 "	9.5 mm	1	3	Black				33.02 mm	1.3 in
TE Connectivity Raychem Cable Protection SST-48-03/FR/97	36 Months	0.07 "	1.78 mm				Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Moisture-Proof Strain Resistant	90 °C	Tubing Semi Rigid	-55 °C	110 °C	Polyolefin (PO) Irradiated	0.1 in	2.54 mm	1	3	Black		1.22 m	4 ft	7.62 mm	0.3 in
TE Connectivity Raychem Cable Protection SST-48-27/226/YLW/NM	144 Months						Abrasion Resistant Adhesive Lined Fluid Resistant Moisture-Proof No Markings Strain Resistant	90 °C	Tubing Semi Rigid	-55 °C	110 °C	Polyolefin (PO) Irradiated			1	3	Yellow		1.22 m	4 ft	68.58 mm	2.7 in	0.16 "	4.06 mm	0.9 in	22.86 mm
TE Connectivity Raychem Cable Protection CB5401-000	36 Months						Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Moisture-Proof Strain Resistant	90 °C	Tubing Semi Rigid	-55 °C	110 °C	Polyolefin (PO) Irradiated	1.75 in	44.45 mm	1	3	Black		1.22 m	4 ft	114.3 mm	4.5 in	0.16 "	4.06 mm
TE Connectivity Raychem Cable Protection SST-48-07/FR/97	36 Months	0.095 in	2.41 mm				Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Moisture-Proof Strain Resistant	90 °C	Tubing Semi Rigid	-55 °C	110 °C	Polyolefin (PO) Irradiated	0.22 in	5.59 mm	1	3	Black		1.22 m	4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	4	$ 17.01
		20	$ 16.71
		41	$ 16.39
		60	$ 15.78
		100	$ 14.58
Digikey	Bulk	60	$ 13.08
Newark	Each	50	$ 19.32
		100	$ 17.00
		250	$ 15.39
		500	$ 14.46

Description

General part information

RAYCHEM SST-SR Series

Heat Shrink Tubing, Black, 3:1, Single Wall, Shrinks To 5.59 mm [.22 in], Irradiated Modified Polyolefin, RAYCHEM SST-SR
