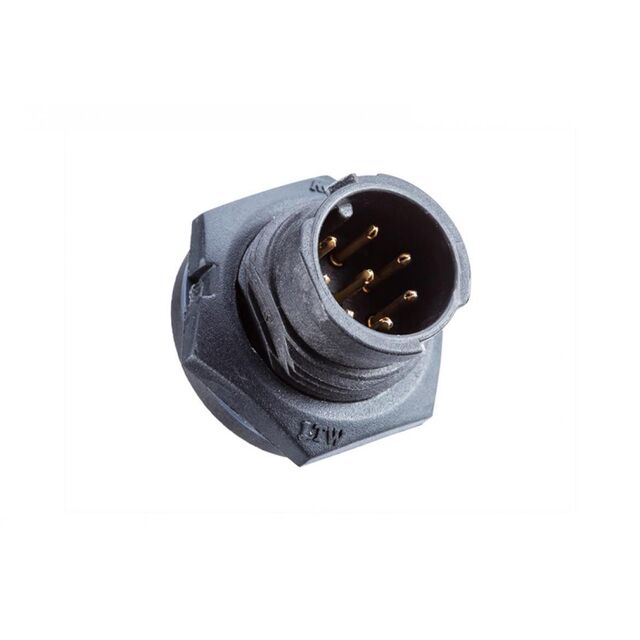

BB-04PMMS-QC800P

Active

Amphenol LTW

STANDARD RECEPTACLE(FRONT)

Search across all available documentation for this part.

Active

Amphenol LTW

STANDARD RECEPTACLE(FRONT)

Technical Specifications

Parameters and characteristics for this part

Specification	BB-04PMMS-QC800P

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Twist
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Fastening Type	Mounting Feature	Shielding	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Insert Material	Material Flammability Rating	Orientation	Contact Material	Color	Connector Type	Shell Size - Insert	Contact Finish - Mating	Voltage Rating	Ingress Protection
Amphenol LTW BB-04PMMS-QC800P	Push-Twist	Bulkhead - Front Side Nut	Unshielded	Plastic	-40 °C	105 ░C	10 A	4	Thermoplastic	UL94 V-0	Keyed	Copper Alloy	Black	Male Pins Receptacle	B	Gold	250 VAC	IP68 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (Power) Position Circular Connector Receptacle, Male Pins Solder Cup
