346-016-555-858

Active

EDAC Inc.

STANDARD CARD EDGE CONNECTORS CARD EDGE CONNECTORS

346-016-555-858

Active

EDAC Inc.

STANDARD CARD EDGE CONNECTORS CARD EDGE CONNECTORS

Description Specifications Series Pricing CAD Documents

Description

General part information

346 Series

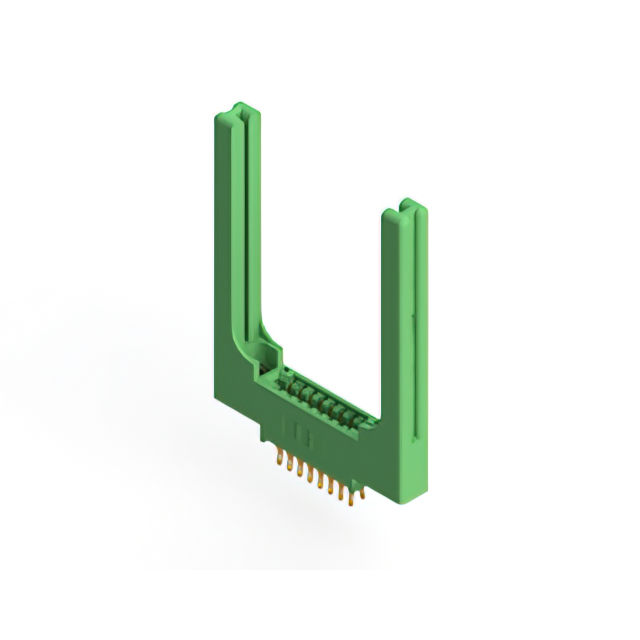

16 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	346-016-555-858

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender, Card Guides
Flange Feature	4-40, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Straddle Mount, Board Edge
Number of Positions	8, 16
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.125 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2 rows

346 Series

...

Part	Card Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Gender	Contact Finish	Number of Positions	Number of Rows	Mounting Type	Termination	Pitch	Flange Feature Diameter	Flange Feature	Contact Finish Thickness	Contact Material	Card Thickness (Min)	Card Thickness (Max)	Read Out	Color	Material - Insulation	Termination Rows	Features
EDAC Inc. 346-023-520-612	Non Specified Single Edge	-40 °C	105 °C	Cantilever	Female	Gold	23	1	Through Hole	Solder	0.125 in	0.128 in	Side Mount Opening Unthreaded	10 Ąin	Copper Alloy	0.054 in	0.07 in	Single	Green	Polyester Thermoplastic	1 rows
EDAC Inc. 346-014-541-101	Non Specified Single Edge	-40 °C	105 °C	Cantilever	Female	Gold	14	1	Through Hole	Wire Wrap	0.125 in			10 Ąin	Copper Alloy	0.054 in	0.07 in	Single	Green	Polyester Thermoplastic	1 rows
EDAC Inc. 346-072-522-808	Dual Edge Non Specified	-40 °C	105 °C	Cantilever	Female	Gold	36 72	2	Through Hole	Solder	0.125 in		4-40 Threaded Insert Top Mount Opening	10 Ąin	Copper Alloy	0.054 in	0.07 in	Dual	Green	Polyester Thermoplastic	2 rows
EDAC Inc. 346-042-560-204	Dual Edge Non Specified	-40 °C	105 °C	Cantilever	Female	Gold	21 42	2	Board Edge Straddle Mount	Solder	0.125 in	0.156 in	Flush Mount Top Opening Unthreaded	10 Ąin	Copper Alloy	0.054 in	0.07 in	Dual	Green			Card Extender
EDAC Inc. 346-068-526-807	Dual Edge Non Specified	-40 °C	105 °C	Cantilever	Female	Gold	34 68	2	Through Hole	Solder	0.125 in		M3 Threaded Insert Top Mount Opening	10 Ąin	Copper Alloy	0.054 in	0.07 in	Dual	Green	Polyester Thermoplastic	2 rows
EDAC Inc. 346-033-558-658	Non Specified Single Edge	-40 °C	105 °C	Cantilever	Female	Gold	33	1	Right Angle Through Hole	Solder Wire Wrap	0.125 in		4-40 Threaded Insert Top Mount Opening	10 Ąin	Copper Alloy	0.054 in	0.07 in	Single	Green	Polyester Thermoplastic	1 rows	Card Guides
EDAC Inc. 346-016-555-858	Dual Edge Non Specified	-40 °C	105 °C	Cantilever	Female	Gold	8 16	2	Board Edge Straddle Mount	Solder Eyelet(s)	0.125 in		4-40 Threaded Insert Top Mount Opening	10 Ąin	Copper Alloy	0.054 in	0.07 in	Dual	Green	Polyester Thermoplastic	2 rows	Card Extender Card Guides
EDAC Inc. 346-026-522-208	Dual Edge Non Specified	-40 °C	105 °C	Cantilever	Female	Gold	13 26	2	Through Hole	Solder	0.125 in		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	Copper Alloy	0.054 in	0.07 in	Dual	Green	Polyester Thermoplastic	2 rows
EDAC Inc. 346-047-500-104	Non Specified Single Edge	-40 °C	105 °C	Cantilever	Female	Gold	47	1	Through Hole	Solder Eyelet(s)	0.125 in	0.156 in	Flush Mount Top Opening Unthreaded	10 Ąin	Copper Alloy	0.054 in	0.07 in	Single	Green
EDAC Inc. 346-092-526-203	Dual Edge Non Specified	-40 °C -40 C	105 °C 105 C	Cantilever	Female	Gold	46 92	2	Through Hole	Solder	0.125 in	0.116 in	Floating Bobbin Flush Mount	10 Ąin 10 in	Copper Alloy	0.054 in	0.07 in	Dual	Green	Polyester Thermoplastic	2 rows

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

346-016-555-858 | Datasheet
