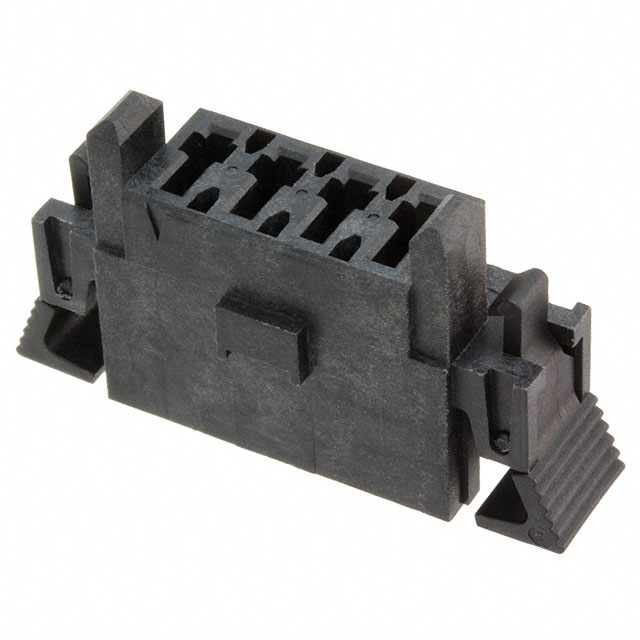

IMS5-04-02
ActiveSamtec Inc.
CONN HOUSING F 4 POS 5MM CRIMP ST CABLE MOUNT BLACK BULK
Deep-Dive with AI
Search across all available documentation for this part.
IMS5-04-02
ActiveSamtec Inc.
CONN HOUSING F 4 POS 5MM CRIMP ST CABLE MOUNT BLACK BULK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IMS5-04-02 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Blade Socket |
| Fastening Type | Latch Lock |
| Features | Panel Lock |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Stacking Direction | Side to Side |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IMS5-04 Series
4 Position Blade Type Power Housing Connector Receptacle Black 0.197" (5.00mm)
