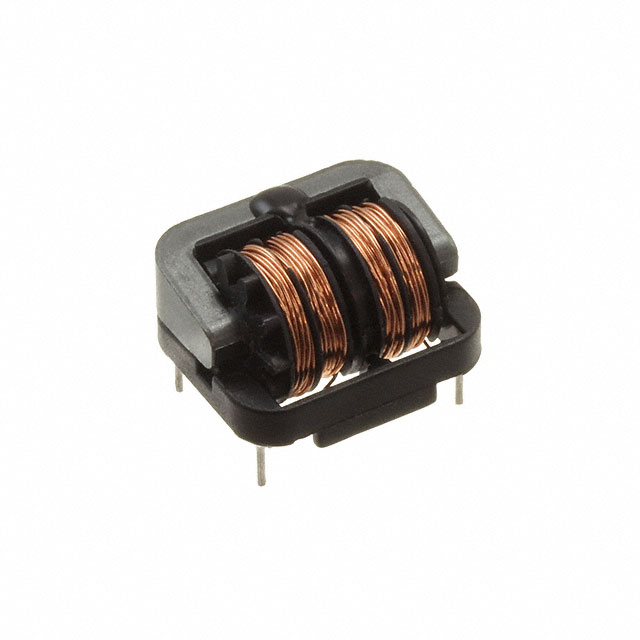

SSR10HS-07265

Active

KEMET

CMC 26.5MH 700MA 2LN TH

Search across all available documentation for this part.

Active

KEMET

CMC 26.5MH 700MA 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Number of Lines	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Inductance @ Frequency	Voltage Rating - AC	DC Resistance (DCR) (Max)	Package / Case	Package / Case	DC Resistance (DCR) (Max) [Max]
KEMET SSR10HS-07265	2	22 mm	16 mm	0.63 in	0.866 in	700 mA	120 °C	-25 °C	Through Hole	13.5 mm	0.531 in	26.5 mH	250 V	850 mOhm	4 Lead	Vertical
KEMET SSR10HS-05495	2	22 mm	16 mm	0.63 in	0.866 in	500 mA	120 °C	-25 °C	Through Hole	13.5 mm	0.531 in	49.5 mH	250 V		4 Lead	Vertical	1.6 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 1.19

General part information

26.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 700mA DCR 850mOhm
