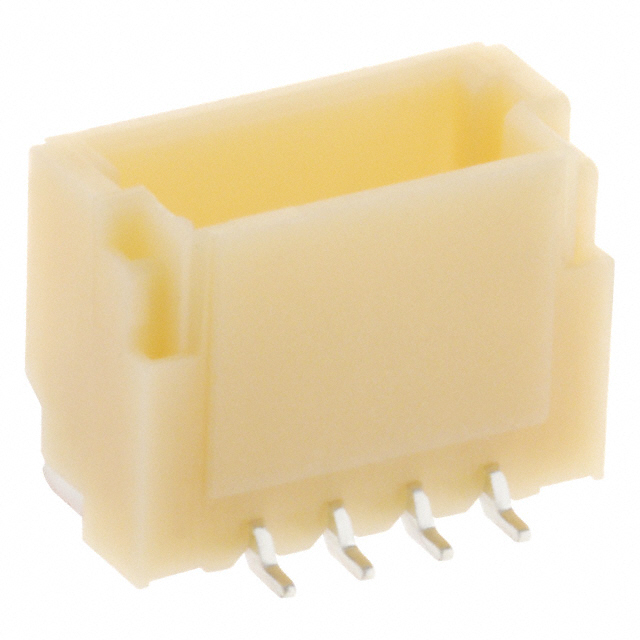

Specification	BM04B-SRSS-TBT

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1 A
Fastening Type	Push-Pull
Features	Solder Retention, Pick and Place
Insulation Color	Natural
Insulation Height	0.167 in
Insulation Material	Nylon, Polyamide (PA)
Mated Stacking Height	4.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.039 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	50 V

BM04B-SR Series

Part	Contact Type	Shrouding	Number of Rows	Fastening Type	Contact Material	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Contact Shape	Number of Positions	Termination	Number of Positions Loaded	Insulation Height	Style	Insulation Material	Connector Type	Pitch - Mating	Current Rating	Contact Finish - Post	Features	Insulation Color	Material Flammability Rating	Mounting Type	Mated Stacking Height
JST Sales America Inc. BM04B-SRSS-TBT	Male Pin	Shrouded - 4 Wall	1	Push-Pull	Copper Alloy	Tin	85 °C	-25 °C	50 V	Square	4	Solder	All	0.167 in	Board Cable/Wire	Nylon Polyamide (PA)	Header	0.039 in	1 A	Tin	Pick and Place Solder Retention	Natural	UL94 V-0	Surface Mount	4.9 mm
JST Sales America Inc. BM04B-SRSS-TB	Male Pin	Shrouded - 4 Wall	1	Push-Pull	Copper Alloy	Tin	85 °C	-25 °C	50 V	Square	4	Solder	All	0.167 in	Board Cable/Wire	Nylon Polyamide (PA)	Header	0.039 in	1 A	Tin	Solder Retention	Natural	UL94 V-0	Surface Mount	4.9 mm
