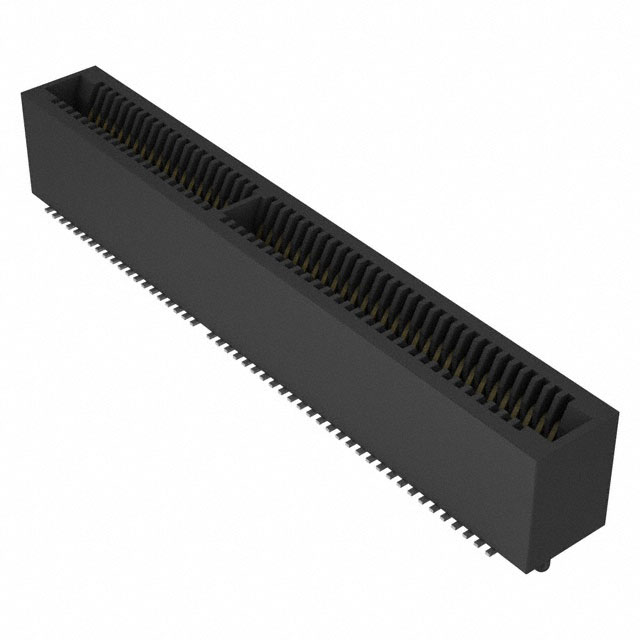

MEC1-150-02-F-D-A-TR

Active

Samtec Inc.

STANDARD CARD EDGE CONNECTORS 1.00 MM MINI EDGE CARD SOCKET

MEC1-150-02-F-D-A-TR

Active

Samtec Inc.

STANDARD CARD EDGE CONNECTORS 1.00 MM MINI EDGE CARD SOCKET

Description Specifications Series Pricing CAD Documents

Description

General part information

MEC1 Series

100 Position Female Connector Non Specified - Dual Edge Gold 0.039" (1.00mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	MEC1-150-02-F-D-A-TR

Card Thickness	0.062 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	3 µin
Contact Material	Phosphor Bronze
Contact Type	Loop Bellows
Features	Board Guide
Gender	Female
Material - Insulation	LCP, Liquid Crystal Polymer
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.039 in
Read Out	Dual
Termination	Solder

MEC1 Series

...

Part	Features	Pitch	Contact Type	Contact Material	Gender	Card Type	Card Thickness	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness	Number of Rows	Read Out	Number of Positions	Termination	Contact Finish	Mounting Type	Material - Insulation
Samtec Inc. MEC1-150-02-F-D-A-TR	Board Guide	0.039 in	Loop Bellows	Phosphor Bronze	Female	Dual Edge Non Specified	0.062 in	Black	125 °C	-55 °C	3 µin	2	Dual	100	Solder	Gold	Surface Mount	LCP Liquid Crystal Polymer
Samtec Inc. MEC1-108-02-L-D-RA1-NP-SL-TR	Board Lock	0.039 in	Loop Bellows	Phosphor Bronze	Female	Dual Edge Non Specified	0.062 in	Black	125 °C	-55 °C	10 Ąin	2	Dual	16	Solder	Gold	Right Angle Surface Mount	LCP Liquid Crystal Polymer
Samtec Inc. MEC1-150-02-F-D-RA2-SL-TR	Board Lock	0.039 in	Loop Bellows	Phosphor Bronze	Female	Dual Edge Non Specified	0.062 in	Black	125 °C	-55 °C	3 µin	2	Dual	100	Solder	Gold	Right Angle Surface Mount
Samtec Inc. MEC1-120-02-F-D-NP-A-K-TR	Board Guide Pick and Place	0.039 in	Loop Bellows	Beryllium Copper	Female	Dual Edge Non Specified	0.062 in	Black	125 °C	-55 °C	3 µin	2	Dual	40	Solder	Gold	Surface Mount	LCP Liquid Crystal Polymer
Samtec Inc. MEC1-140-02-LM-D-RA1-SL		0.039 in	Loop Bellows	Phosphor Bronze	Female	Dual Edge Non Specified	0.062 in	Black	125 °C	-55 °C	10 Ąin	2	Dual	80	Solder	Gold	Right Angle Surface Mount
Samtec Inc. MEC1-108-02-L-D-RA1-NP-SL	Board Lock	0.039 in	Loop Bellows	Phosphor Bronze	Female	Dual Edge Non Specified	0.062 in	Black	125 °C	-55 °C	10 Ąin	2	Dual	16	Solder	Gold	Right Angle Surface Mount
Samtec Inc. MEC1-105-02-F-D-NP		0.039 in	Loop Bellows	Beryllium Copper	Female	Dual Edge Non Specified	0.062 in	Black	125 °C	-55 °C	3 µin	2	Dual	10	Solder	Gold	Surface Mount	LCP Liquid Crystal Polymer
Samtec Inc. MEC1-150-02-S-D-RA1-SL
Samtec Inc. MEC1-130-02-FM-D-RA2-SL-TR	Board Lock	0.039 in	Loop Bellows	Phosphor Bronze	Female	Dual Edge Non Specified	0.062 in	Black	125 °C	-55 °C	3 µin	2	Dual	60	Solder	Gold	Right Angle Surface Mount
Samtec Inc. MEC1-120-02-LM-D-RA1-SL		0.039 in	Loop Bellows	Phosphor Bronze	Female	Dual Edge Non Specified	0.062 in	Black	125 °C	-55 °C	10 Ąin	2	Dual	40	Solder	Gold	Right Angle Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MEC1-150-02-F-D-A-TR | Datasheet

MEC1 Surface Mount & Mating Card Footprint
