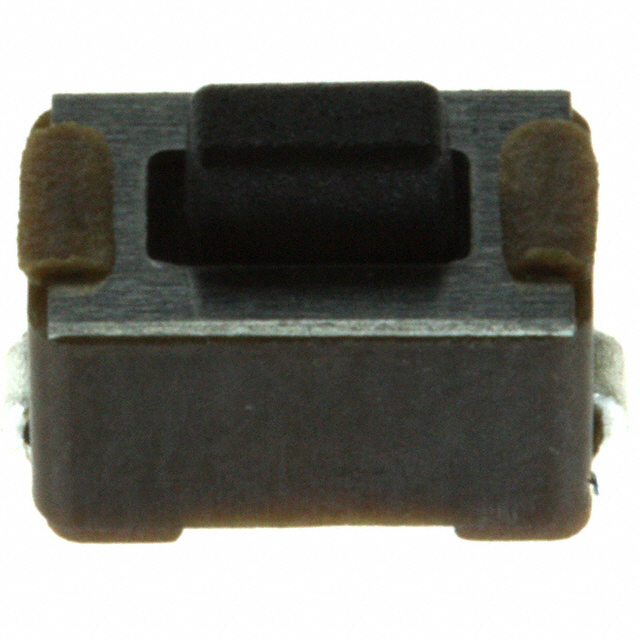

TL3302BF180QJ

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

TL3302BF180QJ

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL3302BF180QJ

Actuator Height off PCB, Vertical	5 mm
Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Orientation	Top Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Mechanical Life	40000 Cycles
Mounting Type	Surface Mount
Operating Force	180 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	3.5 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

TL3302 Series

Part	Mounting Type	Circuit	Illumination	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Outline [y]	Outline [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Switch Travel	Actuator Orientation	Switch Function	Actuator Type	Features	Operating Force	Termination Style	Actuator Material	Actuator Height off PCB, Vertical
E-Switch TL3302AF260QG	Surface Mount	SPST-NO	Non-Illuminated	0.05 A 12 VDC	4.3 mm	3.5 mm	6 mm	-20 C	70 °C	30000 Steps	0.25 mm	Top Actuated	Off-Mom	Rectangular Button	Tactile Feedback	260 gf	Gull Wing	Polyphenylene Sulfide (PPS)
E-Switch TL3302AF130QG	Surface Mount	SPST-NO	Non-Illuminated	0.05 A 12 VDC	4.3 mm	3.5 mm	6 mm	-20 C	70 °C	40000 Cycles	0.25 mm	Top Actuated	Off-Mom	Rectangular Button	Tactile Feedback	130 gf	Gull Wing	Polyphenylene Sulfide (PPS)
E-Switch TL3302BF130QG	Surface Mount	SPST-NO	Non-Illuminated	0.05 A 12 VDC		3.5 mm	6 mm	-20 C	70 °C	40000 Cycles	0.25 mm	Top Actuated	Off-Mom	Rectangular Button	Tactile Feedback	130 gf	Gull Wing	Polyphenylene Sulfide (PPS)	5 mm
E-Switch TL3302BF180QJ	Surface Mount	SPST-NO	Non-Illuminated	0.05 A 12 VDC		3.5 mm	6 mm	-20 C	70 °C	40000 Cycles	0.25 mm	Top Actuated	Off-Mom	Rectangular Button	Tactile Feedback	180 gf	J Lead	Polyphenylene Sulfide (PPS)	5 mm
E-Switch TL3302BF130QJ	Surface Mount	SPST-NO	Non-Illuminated	0.05 A 12 VDC		3.5 mm	6 mm	-20 C	70 °C	40000 Cycles	0.25 mm	Top Actuated	Off-Mom	Rectangular Button	Tactile Feedback	130 gf	J Lead	Polyphenylene Sulfide (PPS)	5 mm
E-Switch TL3302AF180QJ	Surface Mount	SPST-NO	Non-Illuminated	0.05 A 12 VDC	4.3 mm	3.5 mm	6 mm	-20 C	70 °C	40000 Cycles	0.25 mm	Top Actuated	Off-Mom	Rectangular Button	Tactile Feedback	180 gf	J Lead	Polyphenylene Sulfide (PPS)
E-Switch TL3302BF180QG/TR	Surface Mount	SPST-NO	Non-Illuminated	0.05 A 12 VDC		3.5 mm	6 mm	-20 C	70 °C	40000 Cycles	0.25 mm	Top Actuated	Off-Mom	Rectangular Button	Tactile Feedback	180 gf	Gull Wing	Polyphenylene Sulfide (PPS)	5 mm
