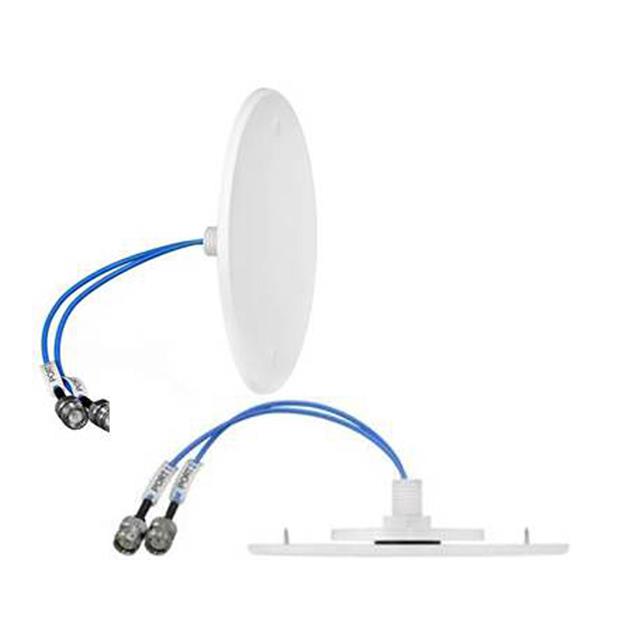

CFD69383P1-30NF
ActiveTE Connectivity Raychem Cable Protection
OMNI,DBAND,30CM,NF,HOLES 698-960,1690-38
Deep-Dive with AI
Search across all available documentation for this part.
CFD69383P1-30NF
ActiveTE Connectivity Raychem Cable Protection
OMNI,DBAND,30CM,NF,HOLES 698-960,1690-38
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CFD69383P1-30NF |
|---|---|
| Antenna Type | Flat Panel |
| Applications | LTE, WiMax™ |
| Features | 300 mm |
| Features | Cable |
| Frequency Group | Wide Band |
| Gain | 6 dB |
| Height (Max) [Max] | 0.299 in |
| Height (Max) [Max] | 7.6 mm |
| Number of Bands | 3 |
| Power - Max [Max] | 50 W |
| RF Family/Standard | Cellular, WiFi |
| Termination | N Type Female |
| VSWR | 2 |
CFD69383 Series
| Part | Frequency Group | Features | Features | RF Family/Standard | Number of Bands | Antenna Type | Gain | Termination | Height (Max) [Max] | Height (Max) [Max] | Power - Max [Max] | VSWR | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Wide Band | 300 mm | Cable | Cellular WiFi | 3 | Flat Panel | 6 dB | 4.3/10 - Female | 0.299 in | 7.6 mm | 50 W | 2 | LTE WiMax™ |
TE Connectivity Raychem Cable Protection | Wide Band | 300 mm | Cable | Cellular WiFi | 3 | Flat Panel | 6 dB | 4.3/10 - Female | 0.299 in | 7.6 mm | 50 W | 2 | LTE WiMax™ |
TE Connectivity Raychem Cable Protection | Wide Band | 300 mm | Cable | Cellular WiFi | 3 | Flat Panel | 6 dB | N Type Female | 0.299 in | 7.6 mm | 50 W | 2 | LTE WiMax™ |
TE Connectivity Raychem Cable Protection | Wide Band | 300 mm | Cable | Cellular WiFi | 3 | Flat Panel | 6 dB | N Type Female | 0.299 in | 7.6 mm | 50 W | 2 | LTE WiMax™ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 89.87 | |
| 10 | $ 85.23 | |||
| 25 | $ 82.91 | |||
| 100 | $ 77.11 | |||
Description
General part information
CFD69383 Series
Dome/Puck Antenna, Wide Band, 5G / Cat-M/NB-IoT / DAS, Remote Mount, Wall/Ceiling Mount, N-type, Omnidirectional, Multiple Ports, CFD Series
Documents
Technical documentation and resources
