009155005852006
ActiveKYOCERA AVX

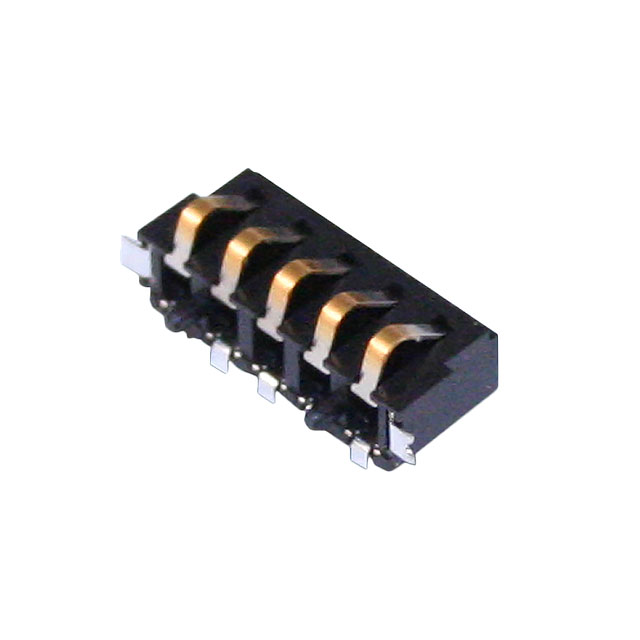

CONN SPRING BATTERY 5POS R/A SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
009155005852006
ActiveKYOCERA AVX
CONN SPRING BATTERY 5POS R/A SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 009155005852006 | 009155 Series |
|---|---|---|
| Connector Type | Battery Contact | Battery Contact |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 16 µin | 15 - 16 µin |
| Contact Finish Thickness | 0.41 µm | 0.38 - 0.41 µm |
| Material | Beryllium Copper | Phosphor Bronze, Beryllium Copper |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Surface Mount, Right Angle |
| Number of Contacts | 5 | 3 - 5 |
| Number of Contacts | - | 4 - 6 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 0.079 in | 0.05 - 0.157 in |
| Pitch [x] | 2 mm | 1.27 - 4 mm |
009155 Series
CONN SPRING BATTERY 3POS SMD
| Part | Contact Finish | Number of Contacts | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Pitch [x] | Pitch [x] | Mounting Type | Material | Number of Rows | Number of Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|
KYOCERA AVX 009155003402006 | Gold | 3 | 16 µin | 0.41 µm | Battery Contact | 4 mm | 0.157 in | Surface Mount | Phosphor Bronze | 1 | |
KYOCERA AVX 009155005003016 | Gold | 5 | 15 µin | 0.38 µm | Battery Contact | 2.5 mm | 0.098 in | Surface Mount | 1 | ||
KYOCERA AVX 009155006401006 | Gold | 16 µin | 0.41 µm | Battery Contact | 4 mm | 0.157 in | Surface Mount | Beryllium Copper | 1 | 6 | |
KYOCERA AVX 009155005852006 | Gold | 5 | 16 µin | 0.41 µm | Battery Contact | 2 mm | 0.079 in | Surface Mount, Right Angle | Beryllium Copper | 1 | |
KYOCERA AVX 009155004541006 | Gold | 15 µin | 0.38 µm | Battery Contact | 2.5 mm | 0.098 in | Surface Mount, Right Angle | Beryllium Copper | 1 | 4 | |
KYOCERA AVX 009155004402006 | Gold | 16 µin | 0.41 µm | Battery Contact | 4 mm | 0.157 in | Surface Mount | Phosphor Bronze | 1 | 4 | |
KYOCERA AVX 009155004301006 | Gold | 15 µin | 0.38 µm | Battery Contact | 3 mm | 0.118 in | Surface Mount, Right Angle | 1 | 4 | ||
KYOCERA AVX 009155003852006 | Gold | 3 | 16 µin | 0.41 µm | Battery Contact | 2 mm | 0.079 in | Surface Mount, Right Angle | Beryllium Copper | 1 | |
KYOCERA AVX 009155003201006 | Gold | 3 | 15 µin | 0.38 µm | Battery Contact | 2.5 mm | 0.098 in | Surface Mount | 1 | ||
KYOCERA AVX 009155002100006 | Gold | 15 µin | 0.38 µm | Battery Contact | 2.5 mm | 0.098 in | Surface Mount | 1 |
