36960
ActiveTE Connectivity AMP Connectors

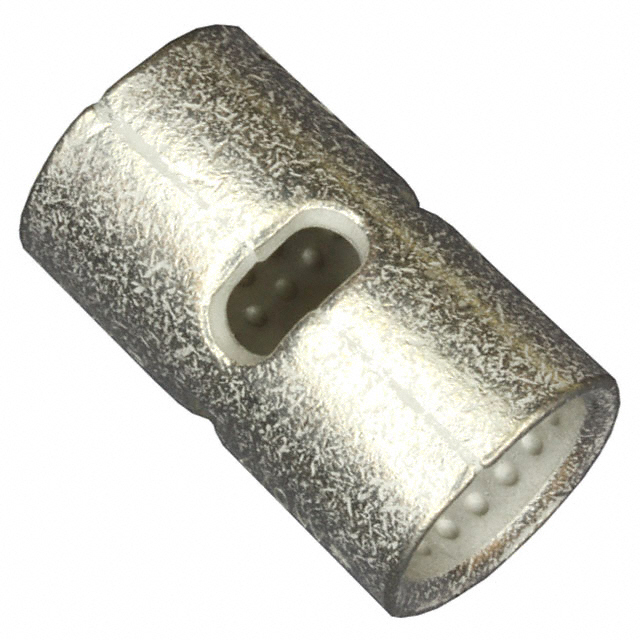

CONN SPLICE 4/0 AWG CRIMP
36960
ActiveTE Connectivity AMP Connectors
CONN SPLICE 4/0 AWG CRIMP
Description
General part information
3696 Series
Butt Splice, 4/0 AWG, 125 mm² Wire, Sight Hole, 190000 – 231100 CMA, Copper, 37.69 mm [1.484 in] Length, Loose Piece, Closed Barrel
Technical Specifications
Parameters and characteristics for this part
| Specification | 36960 |
|---|---|
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Individual Openings, Butt Splice |
| Termination | Crimp |
| Wire Gauge | 4/0 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Datasheet
Plastic-Grip and Solistrand terminal, butt and parallel connectors
WIRE CONNECTORS, BUTT AND PARALLEL SPLICES, NON-INSULATED TYPE SOLISTRAND REPORT
ENG_CD_36960_F.pdf
WIRE CONN, TERMINALS, BUTT AND PARALLEL CONNECTORS-PLASTI-GRIP, SOLISTRAND, STD B, DIAMOND GRIP, PIDG AND AMPOWER REPORT
PLASTI-GRIP INSULATED BUTT SPLICES, TERMNAL SPLICES AND TERMINALS REPORT
Plastic-Grip terminals
SOLISTRAND Pressure Type Wire Connectors, Terminals and Splices (Use Type W Tooling)
