ITRA-0235-D103

Active

SCHURTER Inc.

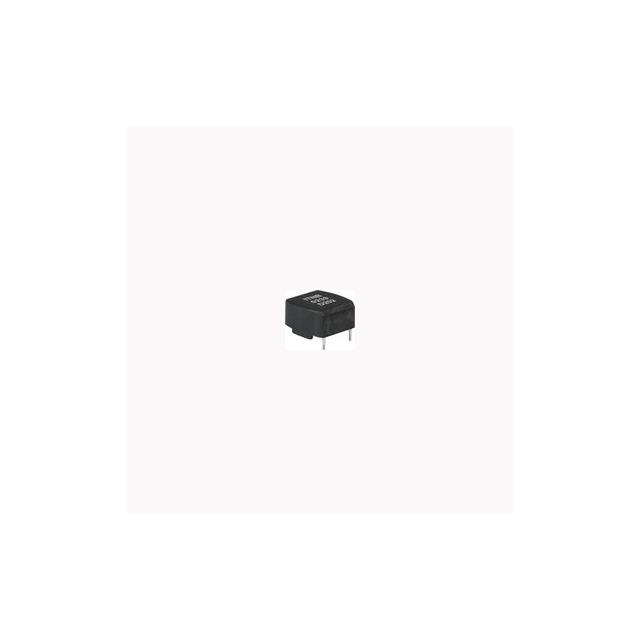

ITRA PULSE TRANSFORMER THT 0.1A

Search across all available documentation for this part.

Active

SCHURTER Inc.

ITRA PULSE TRANSFORMER THT 0.1A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ITRA-0235-D103	ITRA Series

Height - Seated (Max) [Max] [z]	10.6 mm	10.6 - 13 mm
Height - Seated (Max) [Max] [z]	0.417 in	0.417 - 0.512 "
Inductance	2.8 mH	2.8 - 3.5 mH
Mounting Type	Through Hole	Through Hole
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Size / Dimension [x]	13 mm	0.701 - 17.8 in
Size / Dimension [x]	0.512 in	0.512 in
Size / Dimension [y]	15.2 mm	0.717 - 18.2 mm
Size / Dimension [y]	0.598 in	0.598 in
Transformer Type	Isolation and Data Interface (Encapsulated)	Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary	1:1	1:1
Weight	0.28 oz	0.28 - 0.32 oz
Weight	7.98 g	7.98 - 9.12 g

1:1 PLUGIN,18.2X17.8MM PULSE TRANSFORMERS(LAN) ROHS

Part	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Mounting Type	Operating Temperature [custom]	Transformer Type	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Turns Ratio - Primary:Secondary	Size / Dimension [x]	Size / Dimension [y]
SCHURTER Inc. ITRA-0249-D104	0.701 in, 17.8 mm	0.717 in, 18.2 mm	9.12 g	0.32 oz	Through Hole	-25 °C, 100 °C	Isolation and Data Interface (Encapsulated)	3.5 mH	13 mm	0.512 "	1:1
SCHURTER Inc. ITRA-0235-D103	13 mm	15.2 mm	7.98 g	0.28 oz	Through Hole	-25 °C, 100 °C	Isolation and Data Interface (Encapsulated)	2.8 mH	10.6 mm	0.417 in	1:1	0.512 in	0.598 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	960	$ 3.41

General part information

2.8mH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Through Hole
