Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BTB41-600BRG | BTB41 Series |
|---|---|---|
| - | - | |
| Configuration | Single | Single |
| Current - Gate Trigger (Igt) (Max) [Max] | 50 mA | 50 mA |
| Current - Hold (Ih) (Max) [Max] | 80 mA | 80 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 420 A, 400 A | 400 - 420 A |
| Current - On State (It (RMS)) (Max) [Max] | 40 A | 40 A |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |

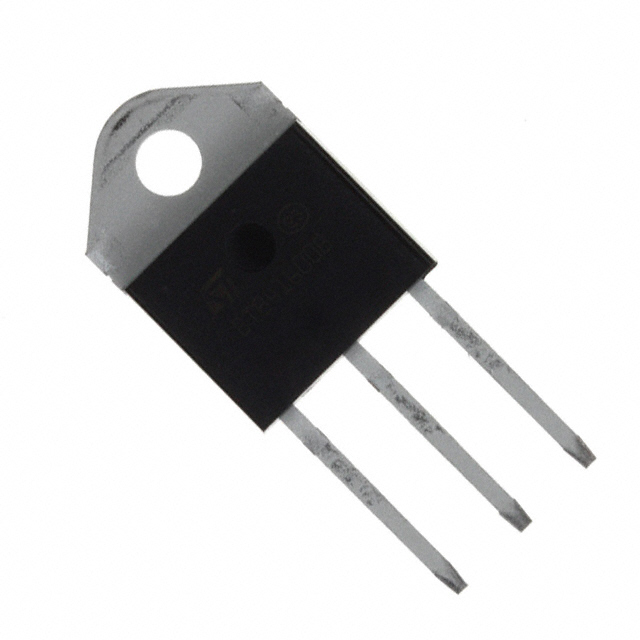

| Package / Case | TOP-3 | TOP-3 |
| Supplier Device Package | TOP3 | TOP3 |
| Triac Type | Standard | Standard |
| Voltage - Gate Trigger (Vgt) (Max) [Max] | 1.3 V | 1.3 V |
| Voltage - Off State | 600 V | 600 - 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.85 | |
| 30 | $ 3.32 | |||
| 120 | $ 2.76 | |||
| 510 | $ 2.35 | |||
| 1020 | $ 2.27 | |||
BTB41 Series
40A standard Triacs
| Part | Mounting Type | Package / Case | Voltage - Gate Trigger (Vgt) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Gate Trigger (Igt) (Max) [Max] | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - On State (It (RMS)) (Max) [Max] | Triac Type | Current - Hold (Ih) (Max) [Max] | Configuration | Supplier Device Package | Voltage - Off State |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics BTB41-800BRG | |||||||||||||
STMicroelectronics BTB41-800BRG | |||||||||||||
STMicroelectronics BTB41-600BRG | Through Hole | TOP-3 | 1.3 V | -40 °C | 125 ¯C | 50 mA | 400 A, 420 A | 40 A | Standard | 80 mA | Single | TOP3 | 600 V |
STMicroelectronics BTB41-600BRG | |||||||||||||
STMicroelectronics BTB41-800BRG | Through Hole | TOP-3 | 1.3 V | -40 °C | 125 ¯C | 50 mA | 400 A, 420 A | 40 A | Standard | 80 mA | Single | TOP3 | 800 V |
Description
General part information
BTB41 Series
Available in high power packages, the BTA/BTB40-41 series is suitable for general purpose AC switching.
The BTA series provides an insulated tab (rated at 2500 V rms).
