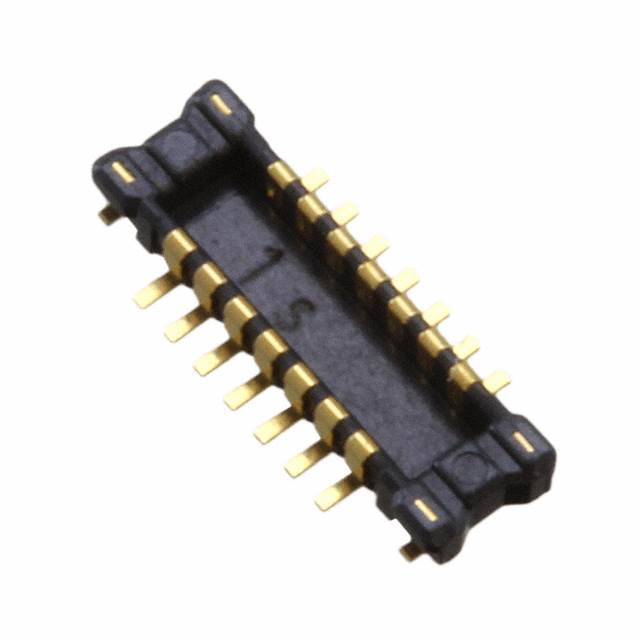

AXE614224

Active

Panasonic Electric Works

CONN HDR 14POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 14POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE614224

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.026 in
Height Above Board	0.65 mm
Mated Stacking Heights	1 mm, 0.8 mm
Mounting Type	Surface Mount
Number of Positions	14
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Connector Type	Contact Finish	Mounting Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Features	Number of Positions	Height Above Board	Height Above Board	Number of Rows
Panasonic Electric Works AXE614224	Header Outer Shroud Contacts	Gold	Surface Mount	0.8 mm 1 mm	0.016 in	0.4 mm	Solder Retention	14	0.026 in	0.65 mm	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5000	$ 1.18

General part information

14 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
