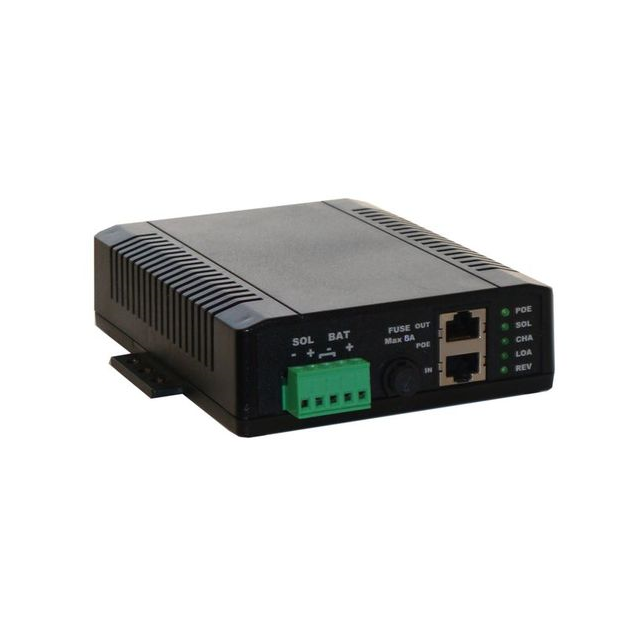

TP-SCPOE-2424-HP

Active

Tycon Systems Inc.

BATT CHRGR SOLAR 24V 20V1A

Search across all available documentation for this part.

Active

Tycon Systems Inc.

BATT CHRGR SOLAR 24V 20V1A

Technical Specifications

Parameters and characteristics commom to parts in this series

BATT CHARGER SOLAR 24V 1.25A

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Battery Chemistry	Battery Cell Size	Type	Number of Cells	Voltage - Nominal	Features	Termination Style	Voltage - Input [Max]	Voltage - Input [Min]	Charge Current - Max [Max]	Mounting Type	Power - Max [Max]	Voltage - Nominal [Max]	Voltage - Nominal [Min]	Charge Current - Max
Tycon Systems Inc. TP-SCPOE-1224	40 mm	118 mm	6.26 in	4.65 in	1.57 "	159 mm	-30 ░C	60 °C	Lead Acid, Lithium-Ion	12 V	Solar Charger	1	14.6 V	LED Indicator	Terminal Block	36 V	15 V	1.25 A	Desktop
Tycon Systems Inc. TP-SCPOE-2424-HP							-30 ░C	60 °C	Lead Acid, Lithium-Ion	24 V	Solar Charger	2	24 V	LED Indicator	Terminal Block	55 V	30 V	1 A	Desktop	60 W	25 V	20 V
Tycon Systems Inc. TP-SCPOE-2448-HP							-30 ░C	60 °C	Lead Acid, Lithium-Ion	24 V	Solar Charger	2	48 V	LED Indicator	Terminal Block	55 V	30 V		Desktop	60 W	25 V	20 V	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solar Charger Battery Charger 24V, 20V ~ 25V 1A 24V
