Connectors, Interconnects
776433-2
ActiveTE Connectivity Raychem Cable Protection

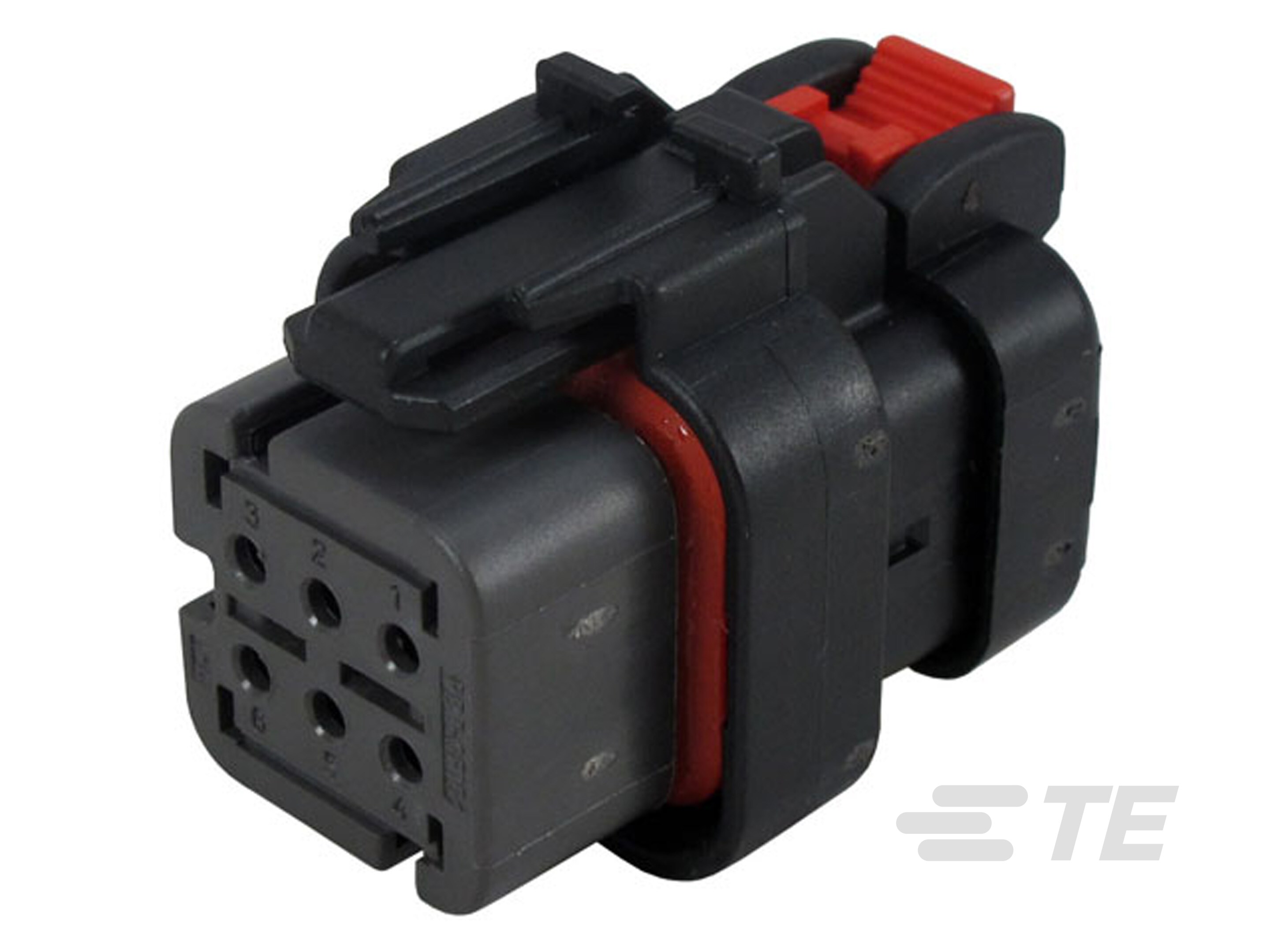

CONN PLUG HSG 6POS 4.50MM
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
776433-2
ActiveTE Connectivity Raychem Cable Protection
CONN PLUG HSG 6POS 4.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 776433-2 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.177 in |
| Pitch [x] | 4.5 mm |
| Row Spacing | 0.209 in |
| Row Spacing | 5.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.62 | |
| 22 | $ 3.28 | |||
| 110 | $ 2.89 | |||
| 1012 | $ 2.10 | |||
| 5016 | $ 1.88 | |||
Description
General part information
776433 Series
6 Rectangular Connectors - Housings Plug Black 0.177" (4.50mm)
Documents
Technical documentation and resources
No documents available
