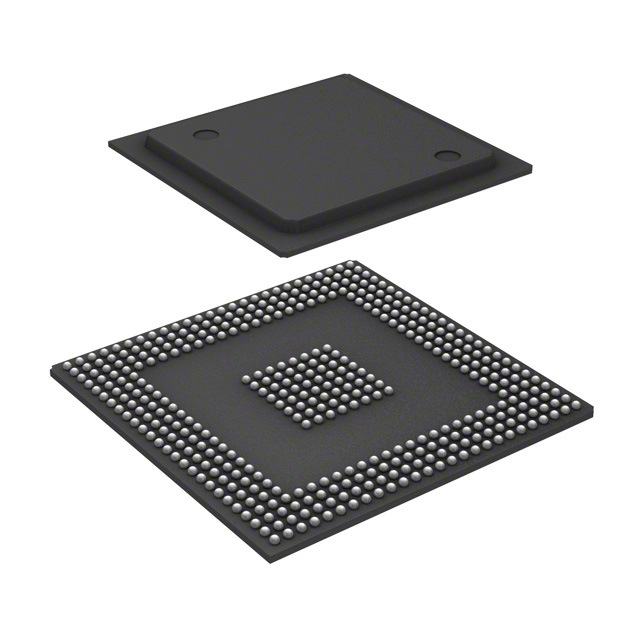

TC1793F512F270EBABKXUMA1

Unknown

Infineon Technologies

IC MCU 32BIT 4MB FLASH 416BGA

Search across all available documentation for this part.

Unknown

Infineon Technologies

IC MCU 32BIT 4MB FLASH 416BGA

Technical Specifications

Parameters and characteristics for this part

Specification	TC1793F512F270EBABKXUMA1

Connectivity	EBI/EMI, MSC, CANbus, MLI, FlexRay, ASC, SSC
Core Size	32-Bit Single-Core
Data Converters	8x10b, 44x12b
EEPROM Size	192 K
Mounting Type	Surface Mount
Number of I/O	221
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External
Package / Case	416-BGA
Peripherals	POR, DMA, WDT
Program Memory Size	4 MB
Program Memory Type	FLASH
RAM Size	288 K
Speed	270 MHz
Supplier Device Package	PG-BGA-416
Voltage - Supply (Vcc/Vdd) [Max]	3.63 V
Voltage - Supply (Vcc/Vdd) [Min]	1.17 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Core Size	RAM Size	Connectivity	EEPROM Size	Program Memory Type	Package / Case	Peripherals	Oscillator Type	Speed	Data Converters	Program Memory Size	Number of I/O	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type
Infineon Technologies TC1793F512F270EBABKXUMA1	-40 °C	125 °C	PG-BGA-416	32-Bit Single-Core	288 K	ASC CANbus EBI/EMI FlexRay MLI MSC SSC	192 K	FLASH	416-BGA	DMA POR WDT	External	270 MHz	44x12b 8x10b	4 MB	221	1.17 V	3.63 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TriCore™ TC17xx Microcontroller IC 32-Bit Single-Core 270MHz 4MB (4M x 8) FLASH PG-BGA-416
