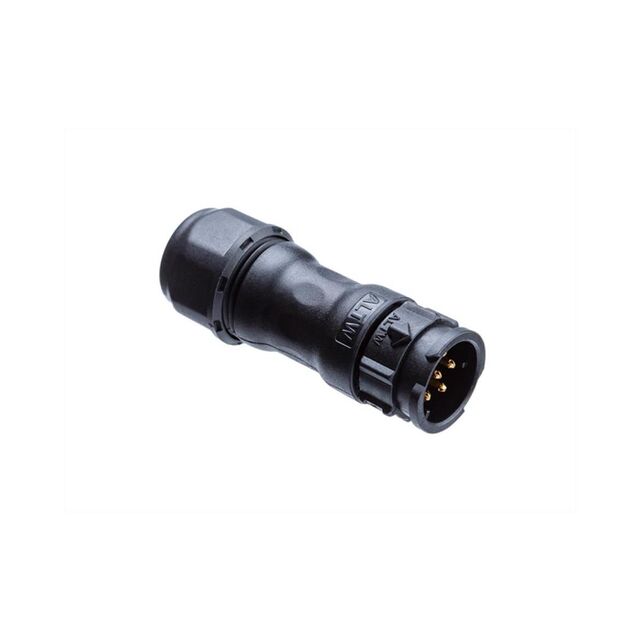

CB-04BMMA-QL8MN0

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, PLASTIC, 10A, 04 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT, PUSH LOCK, CRIMP, FIELD INSTALLABLE WITHOUT P

Deep-Dive with AI

Search across all available documentation for this part.

CB-04BMMA-QL8MN0

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, PLASTIC, 10A, 04 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT, PUSH LOCK, CRIMP, FIELD INSTALLABLE WITHOUT P

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CB-04BMMA-QL8MN0

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	C
Shielding	Unshielded
Type	For Male Pins

CB-04BMMA Series

Part	Contact Finish - Mating	Primary Material	Shielding	Voltage Rating	Connector Type	Termination	Contact Material	Fastening Type	Shell Size - Insert	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Number of Positions	Color	Insert Material	Backshell Material, Plating	Ingress Protection	Features	Note	Contact Type	Contact Shape	Type	Housing Color	Cable Opening [custom]	Cable Opening [custom]	Shell Material	Material Flammability Rating
Amphenol LTW CB-04BMMA-QL8AP0	Gold	Plastic	Unshielded	300 VDC	Male Pins Plug	Crimp	Copper Alloy	Bayonet Lock	C	10 A	Free Hanging (In-Line)	-40 °C	105 ░C	Keyed	4	Black	Thermoplastic	Thermoplastic	IP68 - Dust Tight Waterproof	Backshell
Amphenol LTW CB-04BMMA-QL8AN0		Plastic	Unshielded		Plug Housing			Bayonet Lock	C		Free Hanging (In-Line)	-40 °C	105 ░C	Keyed	4		Thermoplastic		IP68 - Dust Tight Waterproof	Backshell	Contacts Not Included	Crimp	Circular	For Male Pins	Black
Amphenol LTW CB-04BMMA-QL8LN0		Plastic	Unshielded		Plug Housing			Bayonet Lock	C		Free Hanging (In-Line)	-40 °C	105 ░C	Keyed	4		Thermoplastic		IP68 - Dust Tight Waterproof	Backshell	Contacts Not Included	Crimp	Circular	For Male Pins	Black
Amphenol LTW CB-04BMMA-QL8MN0		Plastic	Unshielded		Plug Housing			Bayonet Lock	C		Free Hanging (In-Line)	-40 °C	105 ░C	Keyed	4		Thermoplastic		IP68 - Dust Tight Waterproof	Backshell	Contacts Not Included	Crimp	Circular	For Male Pins	Black
Amphenol LTW CB-04BMMA-QL8LP0	Gold	Plastic	Unshielded	300 VAC	Male Pins Plug	Crimp	Copper Alloy	Push-Pull	C	10 A	Free Hanging (In-Line)	-40 °C	105 ░C	Keyed	4	Black	Polyamide (PA) Nylon Glass Filled		IP68 - Dust Tight Waterproof	Backshell						10 mm 12 mm	0.394 in 0.472 in	Glass Filled Nylon Polyamide (PA)	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 5.37
Newark	Each	10	$ 4.91
		25	$ 4.62
		50	$ 4.26
		100	$ 3.97
		250	$ 3.59
		500	$ 3.50
		1000	$ 3.15

Description

General part information

CB-04BMMA Series

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
