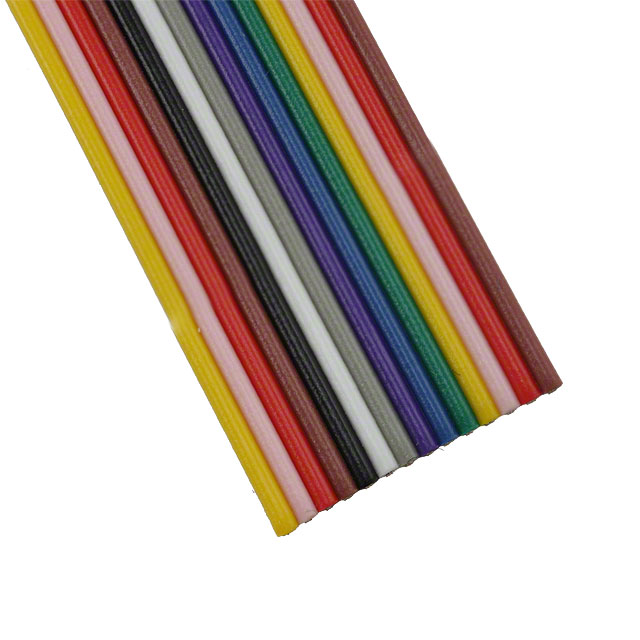

AWG28-14/F-1/300

Unknown

Assmann WSW Components

CBL RIBN 14COND 0.039 MULTI 5'

Search across all available documentation for this part.

Unknown

Assmann WSW Components

CBL RIBN 14COND 0.039 MULTI 5'

Technical Specifications

Parameters and characteristics for this part

Specification	AWG28-14/F-1/300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length	91.44 m, 7.62 m, 15.24 m
Length	300 ft, 25 ft, 50 ft
Length	Enter Number of Feet in Order Quantity
Length [x]	3.05 m
Length [x]	10 ft
Number of Conductors	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [x]	14 mm
Ribbon Width [x]	0.551 in
Shielding	Unshielded
Spool Size	300 ft
Spool Size	91.44 m
Voltage	300 V
Wire Gauge	28 AWG

Part	Length	Length	Ribbon Thickness	Ribbon Thickness	Shielding	Conductor Material	Jacket Color	Operating Temperature	Jacket (Insulation) Material	Insulation Resistance	Number of Conductors	Wire Gauge	Ratings	Voltage	Length	Ribbon Width [x]	Ribbon Width [x]	Length [x]	Length [x]	First Conductor Mark	Pitch [x]	Pitch [x]	Cable Type	Spool Size	Spool Size	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]
Assmann WSW Components AWG28-14/F/300	15.24 m	50 ft	0.89 mm	0.035 in	Unshielded	Copper Tinned	Multiple	105 C	Poly-Vinyl Chloride (PVC)	100 MOhms	14	28 AWG	UL Style 2651	300 V	Enter Number of Feet in Order Quantity	0.7 in	17.78 mm	3.05 m	10 ft	Red	0.05 in	1.27 mm	Flat Cable	300 ft	91.44 m	7	36 AWG
Assmann WSW Components AWG28-14/F-1/300	7.62 m 15.24 m 91.44 m	25 ft 50 ft 300 ft	0.89 mm	0.035 in	Unshielded	Copper Tinned	Multiple		Poly-Vinyl Chloride (PVC)	100 MOhms	14	28 AWG	UL Style 2651	300 V	Enter Number of Feet in Order Quantity	0.551 in	14 mm	3.05 m	10 ft		0.039 in	1 mm	Flat Cable	300 ft	91.44 m	7	36 AWG	105 ░C	-10 °C
Assmann WSW Components AWG28-14/G/300	7.62 m	25 ft	0.89 mm	0.035 in	Unshielded	Copper Tinned	Gray		Poly-Vinyl Chloride (PVC)	100 MOhms	14	28 AWG	UL Style 2651	300 V	Enter Number of Feet in Order Quantity	0.7 in	17.78 mm	30.48 m	100 ft	Red	0.05 in	1.27 mm	Flat Cable	300 ft	91.44 m	7	36 AWG	105 ░C	-10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Flat Ribbon Cable Multiple 14 Conductors 0.039" (1.00mm) Flat Cable 5.0' (1.52m)
