6309FE 877500

Active

Belden Inc.

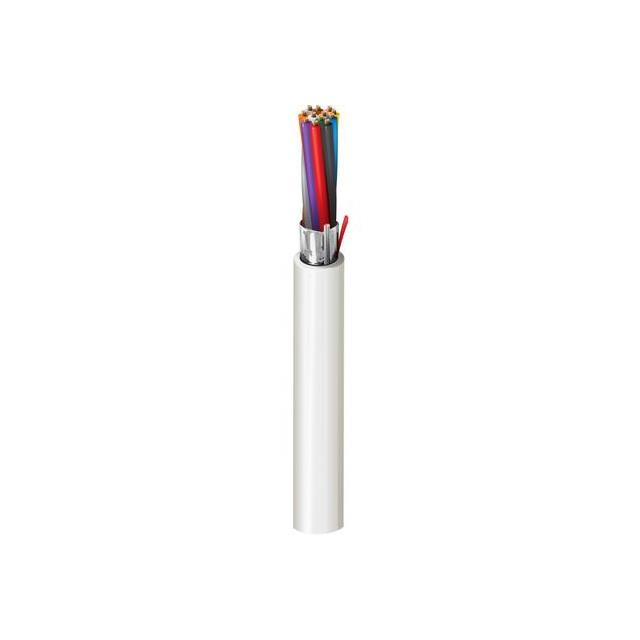

CABLE 12COND 18AWG NATURAL

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 18AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	6309FE 877500

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Poly-Vinyl Chloride (LSPVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.312 in
Jacket (Insulation) Diameter [diameter]	7.92 mm
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Natural
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	12
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	18 AWG

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Conductor Material	Length [x]	Length [x]	Number of Conductors	Conductor Insulation	Voltage	Jacket Color	Shield Coverage	Features	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Wire Gauge	Usage	Jacket (Insulation) Material
Belden Inc. 6309FE 877500	75 ░C	0 °C	Foil	26 AWG	7	0.432 mm	0.017 in	UL Style CMP	Copper Bare	500 '	152.4 m	12	Low Smoke Poly-Vinyl Chloride (LSPVC)	300 V	Natural	100 %	Drain Wire Rip Cord	Multi-Conductor	0.312 in	7.92 mm	Aluminum	18 AWG	Security Sound	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.20

General part information

12 Conductor Multi-Conductor Cable Natural 18 AWG Foil 500.0' (152.4m)
