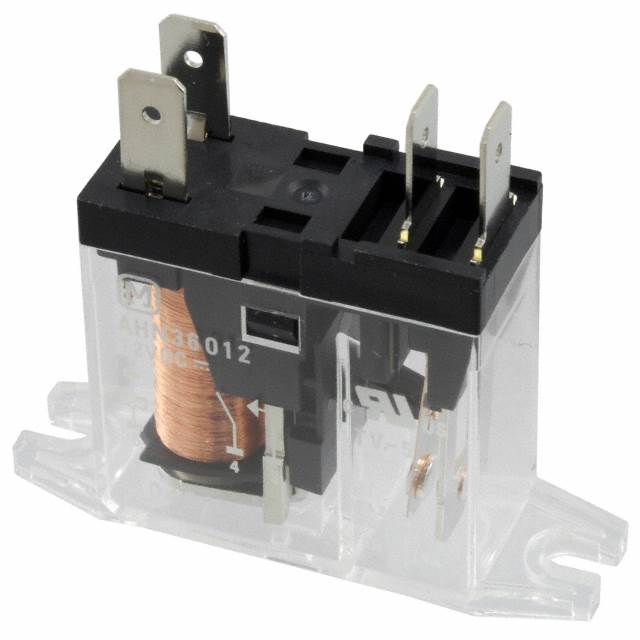

AHN36012

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 16A 12V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 16A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Current	Approval Agency	Contact Form	Release Time	Must Release Voltage	Mounting Type	Coil Voltage	Contact Rating (Current)	Load - Max Switching	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Relay Type	Coil Type	Switching Voltage [Max]	Contact Material	Must Operate Voltage	Operate Time
Panasonic Electric Works AHN36005	106.4 mA	cURus VDE	SPST-NO (1 Form A)	5 ms	0.5 VDC	Chassis Mount	5 VDC	16 A	480 W 4000 VA	Quick Connect - 0.187" (4.7mm)	-40 °C	70 °C	47 Ohms	General Purpose	Non Latching	30 VDC 250 VAC	Silver Tin Oxide (AgSnO)	3.5 VDC	15 ms
Panasonic Electric Works AHN36012	44.4 mA	cURus VDE	SPST-NO (1 Form A)	5 ms	1.2 VDC	Chassis Mount	12 VDC	16 A	480 W 4000 VA	Quick Connect - 0.187" (4.7mm)	-40 °C	70 °C	270 Ohms	General Purpose	Non Latching	30 VDC 250 VAC	Silver Tin Oxide (AgSnO)	8.4 VDC	15 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
