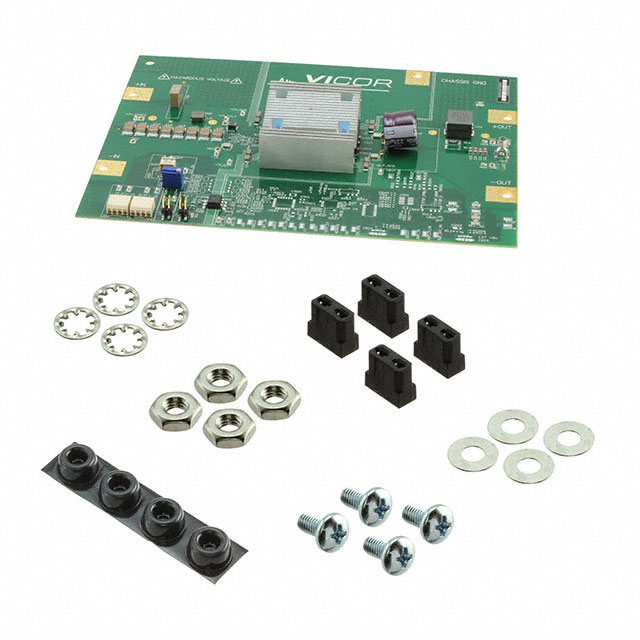

DCD300P480T500A40
ActiveVicor Corporation
EVAL BRD FOR DCM300P480T500A40
DCD300P480T500A40
ActiveVicor Corporation
EVAL BRD FOR DCM300P480T500A40
Description
General part information
DCD300P Series
DCM300P480x500A40 VI Chip® DCM® DC/DC, Step Down 1, Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | DCD300P480T500A40 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 10.5 A |
| Isolated Output Count | 1 |
| Main Purpose | DC/DC, Step Down |
| Output Type | Isolated |
| Power - Output | 500 W |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | DCM300P480x500A40 |
| Voltage - Input (Maximum) | 420 V |
| Voltage - Input (Minimum) | 200 V |
| Voltage - Output | 48 V |
