XH3B-0141-4A

Active

Omron Electronics Inc-EMC Div

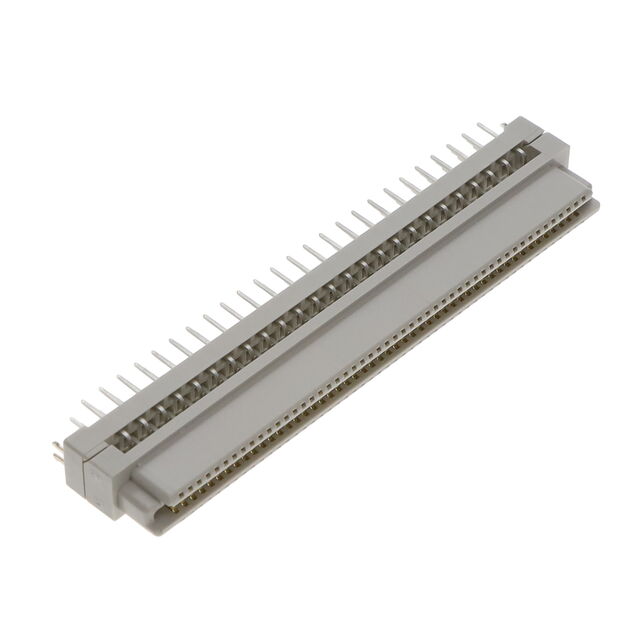

CONN SOCKET 100POS VERT GOLD

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN SOCKET 100POS VERT GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	XH3B-0141-4A

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.524 in
Height Above Board	13.31 mm
Mated Stacking Heights	16 mm, 18 mm, 20 mm
Mounting Type	Through Hole
Number of Positions	100
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

CONN SOCKET 100POS VERT GOLD

Part	Connector Type	Number of Positions	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board	Height Above Board	Mounting Type	Mated Stacking Heights
Omron Electronics Inc-EMC Div XH3B-0141-4A	Outer Shroud Contacts, Socket	100	Gold	0.05 in	1.27 mm	2	0.524 in	13.31 mm	Through Hole	16 mm, 18 mm, 20 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Position Connector Socket, Outer Shroud Contacts Through Hole Gold
