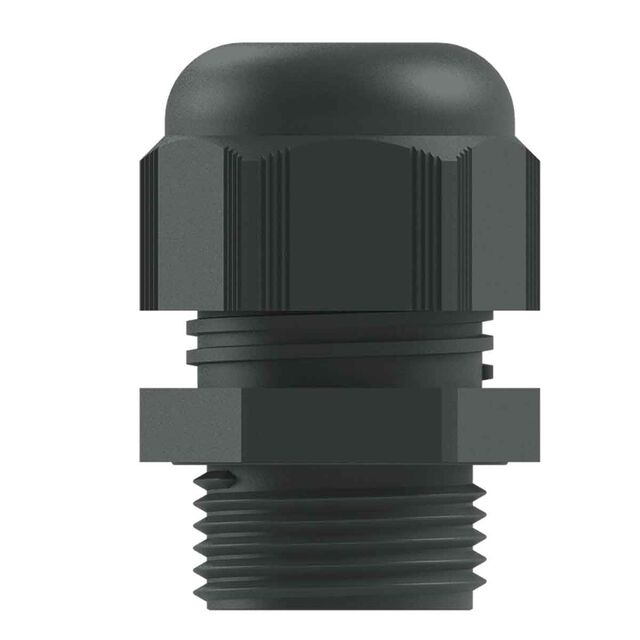

PMB-20L

Active

SAB North America

CABLE GLAND 10-14.02MM M20

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 10-14.02MM M20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Gland Polyamide (PA6), Nylon 6 M20x1.5 Black

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PMB-20L	PMB-20 Series

Color	Black	Black
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max) [Max]	0.552 in	0.355 - 0.552 in
Outside Cable Diameter (Max) [Max]	14.02 mm	9.02 - 14.02 mm
Outside Cable Diameter (Min)	-	5 mm
Outside Cable Diameter (Min)	-	0.197 in
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in	0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm	10 mm
Panel Hole Size	0.787 in	0.787 in
Panel Hole Size	20 mm	20 mm
Thread Length	10 mm	10 mm
Thread Length	0.394 in	0.394 in
Thread Size	M20x1.5	M20x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 10-14.02MM M20

Part	Panel Hole Size	Panel Hole Size	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Ingress Protection	Color	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
SAB North America PMB-20L	0.787 in	20 mm	10 mm	0.394 in	0.552 in	14.02 mm	M20x1.5	0.394 in	10 mm	100 °C	-20 C	Cable Gland	IP68 - Dust Tight, Waterproof	Black
SAB North America PMB-20C	0.787 in	20 mm	10 mm	0.394 in	0.552 in	14.02 mm	M20x1.5	0.394 in	10 mm	100 °C	-20 C	Cable Gland	IP68 - Dust Tight, Waterproof	Black
SAB North America PMB-20R	0.787 in	20 mm	10 mm	0.394 in	0.355 in	9.02 mm	M20x1.5			100 °C	-20 C	Cable Gland	IP68 - Dust Tight, Waterproof	Black	5 mm	0.197 in
