S6E2C2AL0AGL2000A

Obsolete

Infineon Technologies

IC MCU 32BIT 2MB FLASH 216LQFP

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC MCU 32BIT 2MB FLASH 216LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	S6E2C2AL0AGL2000A

Connectivity	SD, EBI/EMI, UART/USART, LINbus, I2C, CSIO, USB, Ethernet, SPI
Core Processor	ARM® Cortex®-M4F
Core Size	32-Bit Single-Core
Data Converters	D/A 2x12b, A/D 32x12b
Mounting Type	Surface Mount
Number of I/O	190
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

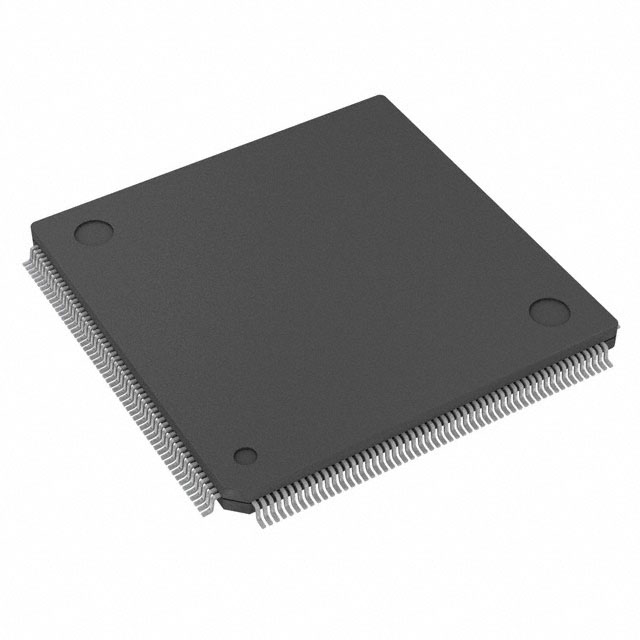

Package / Case	216-LQFP
Program Memory Size	2 MB
Program Memory Type	FLASH
RAM Size	256 K
Speed	200 MHz
Supplier Device Package	216-LQFP (24x24)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

Part	Oscillator Type	Core Size	Speed	Mounting Type	Number of I/O	Operating Temperature [Min]	Operating Temperature [Max]	Core Processor	Program Memory Size	Data Converters	Program Memory Type	Connectivity	RAM Size	Package / Case	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]
Infineon Technologies S6E2C2AJ0AGB1000G	Internal	32-Bit	200 MHz	Surface Mount	152	-40 °C	125 °C	ARM® Cortex®-M4F	2 MB	A/D 32x12b D/A 2x12b	FLASH	CSIO EBI/EMI Ethernet I2C LINbus SD SPI UART/USART USB	256 K	192-LFBGA	192-FBGA (12x12)	2.7 V	5.5 V
Infineon Technologies S6E2C2AL0AGL2000A	Internal	32-Bit Single-Core	200 MHz	Surface Mount	190	-40 °C	125 °C	ARM® Cortex®-M4F	2 MB	A/D 32x12b D/A 2x12b	FLASH	CSIO EBI/EMI Ethernet I2C LINbus SD SPI UART/USART USB	256 K	216-LQFP	216-LQFP (24x24)	2.7 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ARM® Cortex®-M4F FM4 S6E2C2 Microcontroller IC 32-Bit Single-Core 200MHz 2MB (2M x 8) FLASH 216-LQFP (24x24)

Technical documentation and resources

No documents available
