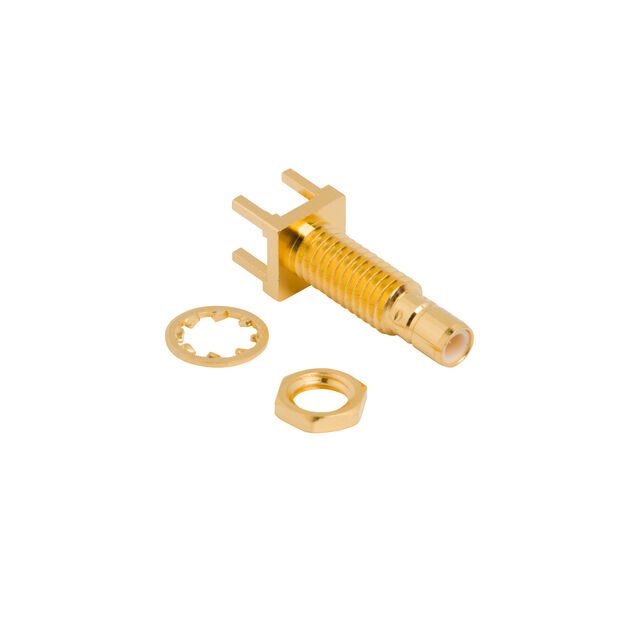

142210-10

Active

Amphenol RF

SMB STRAIGHT PCB JACK, THROUGH H

Search across all available documentation for this part.

Active

Amphenol RF

SMB STRAIGHT PCB JACK, THROUGH H

Technical Specifications

Parameters and characteristics for this part

Specification	142210-10

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Center Contact Plating	Fastening Type	Connector Style	Body Finish	Housing Color	Contact Termination	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Impedance	Insertion Loss	Mounting Type	Frequency - Max [Max]	Mounting Feature	Shield Termination	Center Contact Material	Body Material	Number of Ports	Connector Type	Mating Cycles
Amphenol RF 142210-10	Gold	Snap-On	SMB	Gold	Gold	Solder	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	335 V	50 Ohms	0.3 dB	Panel Mount Through Hole	4 GHz	Bulkhead - Front Side Nut	Solder	Brass	Brass	1	Male Pin Receptacle	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 6.52

General part information

SMB Connector Receptacle, Male Pin 50 Ohms Panel Mount, Through Hole Solder
