1376113-5

Active

TE Connectivity AMP Connectors

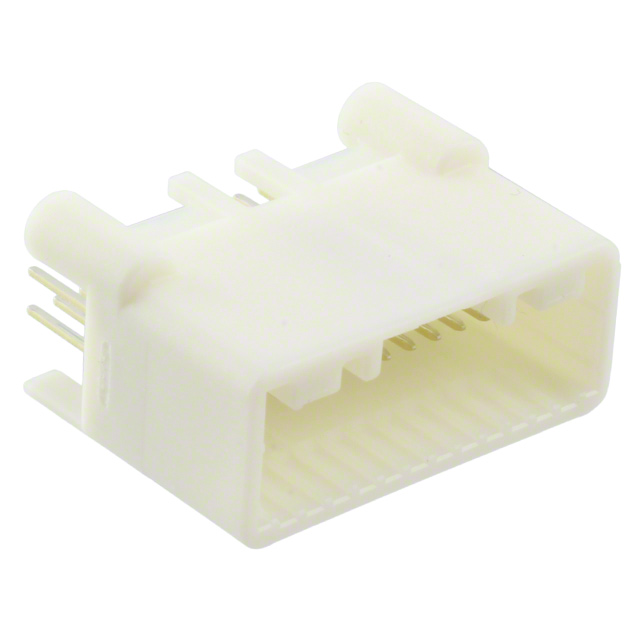

CONN HEADER VERT 40POS 2.2MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 40POS 2.2MM

Technical Specifications

Parameters and characteristics commom to parts in this series

CONNECTOR ASSY

Part	Style	Contact Type	Shrouding	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Termination	Contact Material	Contact Shape	Number of Positions Loaded	Mounting Type	Number of Rows	Features	Fastening Type	Contact Length - Post	Contact Length - Post	Applications
TE Connectivity AMP Connectors 1-1376113-3
TE Connectivity AMP Connectors 1376113-1
TE Connectivity AMP Connectors 1376113-5	Board to Cable/Wire	Male Pin	Shrouded - 4 Wall	23.39 mm	0.921 in	-30 ░C	105 ░C	12 V	Natural	3 mm	0.118 in	0.217 in	5.5 mm	40	Header	0.087 in	2.2 mm	Solder	Brass	Square	All	Through Hole	2	Mounting Flange	Latch Holder	0.157 in	4 mm	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 40 position 0.087" (2.20mm)

Technical documentation and resources

No documents available
