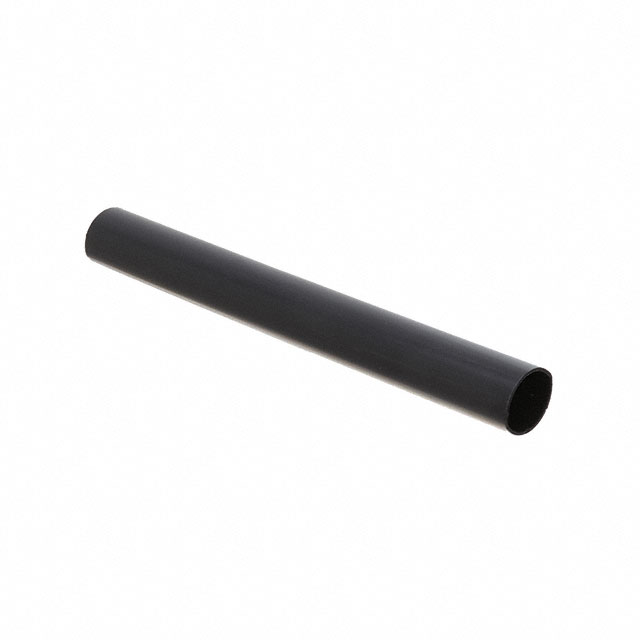

CX4709-000

Obsolete

TE Connectivity Raychem Cable Protection

CPGI-WCSM-12/3-150-BLK

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CPGI-WCSM-12/3-150-BLK

Technical Specifications

Parameters and characteristics for this part

Specification	CX4709-000

Color	Black
Inner Diameter - Recovered	3 mm
Inner Diameter - Recovered	0.118 in
Inner Diameter - Supplied [diameter]	0.472 in
Inner Diameter - Supplied [diameter]	11.99 mm
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Recovered Wall Thickness	0.079 in
Recovered Wall Thickness	2.01 mm
Shrink Temperature	120 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Type	Tubing, Flexible

Part	Material	Inner Diameter - Recovered	Inner Diameter - Recovered	Operating Temperature [Max]	Operating Temperature [Min]	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Type	Color
TE Connectivity Raychem Cable Protection CX4709-000	Polyolefin (PO) Irradiated	3 mm	0.118 in	100 °C	-40 °C	120 °C	0.079 in	2.01 mm	0.472 in	11.99 mm	1	3	Tubing Flexible	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Flexible 0.472" (11.99mm) 3 to 1 Black
