90869-2

Active

TE Application Tooling

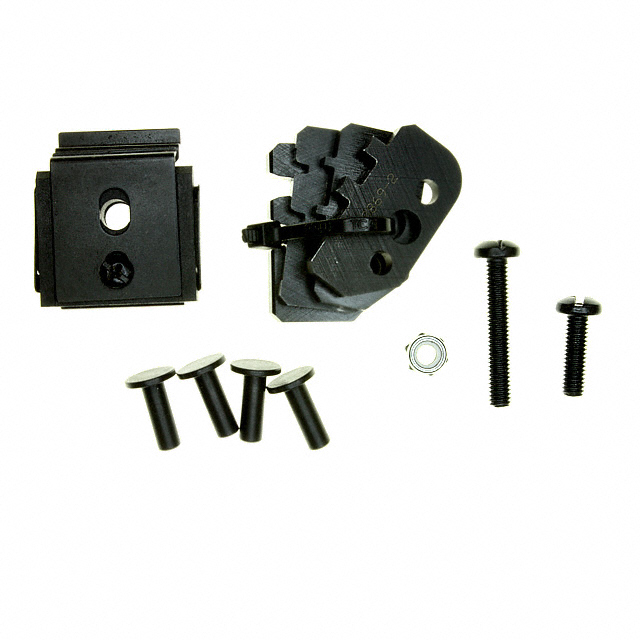

DIE SET 24-18 AWG USE WITH A9996

Search across all available documentation for this part.

Active

TE Application Tooling

DIE SET 24-18 AWG USE WITH A9996

Technical Specifications

Parameters and characteristics for this part

Specification	90869-2

Compatible Tools	9-1478240-0, 679304-1, 354940-1, 1213890-1, 1213890-2, 1490076-2
For Use With/Related Products	Rectangular Contacts, 18-24 AWG
Tool Type	Die Set

Part	Wire Entry Location	For Use With/Related Products	Tool Type	Ratcheting	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Compatible Tools
TE Application Tooling 90869-1	Side Entry	Rectangular Contacts	Hand Crimper	Ratchet	18 AWG	24 AWG
TE Application Tooling 90869-2		Rectangular Contacts 18-24 AWG	Die Set				1213890-1 1213890-2 1490076-2 354940-1 679304-1 9-1478240-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tool Die Set For Rectangular Contacts, 18-24 AWG
