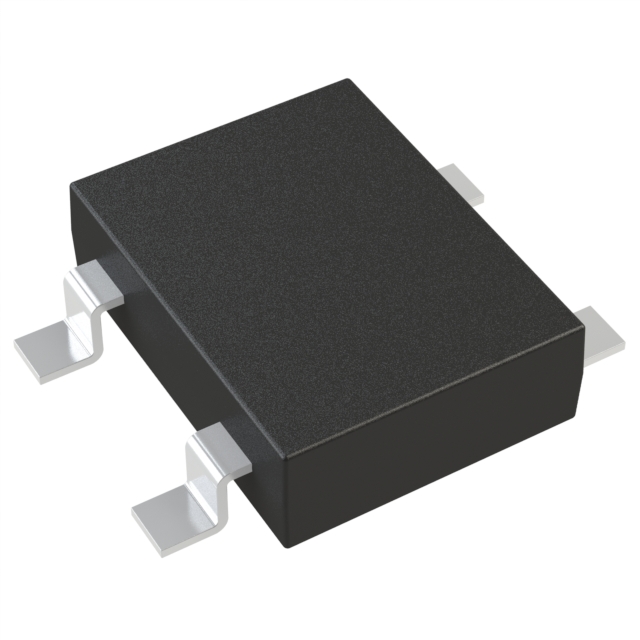

UABF1510-13

Obsolete

Diodes Inc

1.5A SURFACE MOUNT FAST GLASS PASSIVATED BRIDGE RECTIFIER

Search across all available documentation for this part.

Obsolete

Diodes Inc

1.5A SURFACE MOUNT FAST GLASS PASSIVATED BRIDGE RECTIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	UABF1510-13

Current - Average Rectified (Io)	1.5 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SOPA
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.3 V
Voltage - Peak Reverse (Max) [Max]	1000 V

1.5A SURFACE MOUNT FAST GLASS PASSIVATED BRIDGE RECTIFIER

Part	Mounting Type	Diode Type	Technology	Voltage - Peak Reverse (Max) [Max]	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Min]	Operating Temperature [Max]	Current - Average Rectified (Io)	Supplier Device Package
Diodes Inc UABF1510-13	Surface Mount	Single Phase	Standard	1000 V	4-SMD Gull Wing	5 µA	1.3 V	-55 °C	150 °C	1.5 A	4-SOPA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1.5A SURFACE MOUNT FAST GLASS PASSIVATED BRIDGE RECTIFIER

Technical documentation and resources
