8109-RC
ActiveBourns Inc.
CMC 30MH 2.3A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

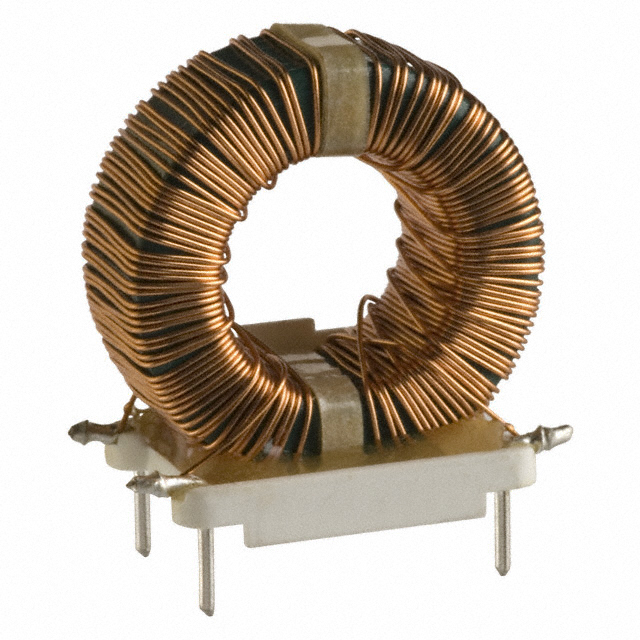

8109-RC
ActiveBourns Inc.
CMC 30MH 2.3A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8109-RC |
|---|---|
| Current Rating (Max) [Max] | 2.3 A |
| DC Resistance (DCR) (Max) [Max] | 330 mOhm |
| Height (Max) [Max] | 36.83 mm |
| Height (Max) [Max] | 1.45 in |
| Inductance @ Frequency | 30 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 1.35 " |
| Size / Dimension [x] | 34.29 mm |
| Size / Dimension [y] | 20.32 mm |
| Size / Dimension [y] | 0.8 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.63 | |
| 10 | $ 8.31 | |||
| 240 | $ 6.98 | |||
| 1200 | $ 6.41 | |||
Description
General part information
8109 Series
30 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2.3A DCR 330mOhm
