N4634-2300RB
Active3M
80000902868 N4634-2300-RB=34/HDR/SMT/STR/LL/FLG/30AVG/ROHS
Deep-Dive with AI
Search across all available documentation for this part.
N4634-2300RB
Active3M
80000902868 N4634-2300-RB=34/HDR/SMT/STR/LL/FLG/30AVG/ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | N4634-2300RB | N4634 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 300 µin | 200 - 300 µin |
| Contact Finish Thickness - Post | 7.62 µm | 5.08 - 7.62 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1.25 A | 1.25 A |
| Fastening Type | Latch Lock/Eject Hooks, Long | Latch Lock/Eject Hooks, Short, Latch Lock/Eject Hooks, Long |
| Insulation Color | Black | Black |
| Insulation Height | 0.525 in | 0.525 in |
| Insulation Height | 13.34 mm | 13.34 mm |
| Insulation Material | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 34 | 34 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
N4634 Series
CONN HEADER SMD 34POS 2.54MM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Style | Material Flammability Rating | Current Rating (Amps) | Contact Type | Contact Material | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Contact Finish - Mating | Insulation Color | Insulation Material | Insulation Height | Insulation Height | Contact Shape | Pitch - Mating | Pitch - Mating | Number of Rows | Number of Positions Loaded | Fastening Type | Mounting Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
105 ░C | -55 °C | Header | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Board to Cable/Wire | UL94 V-0 | 1.25 A | Male Pin | Copper Alloy | Solder | 200 µin | 5.08 µm | 2.54 mm | 0.1 in | 34 | Gold | Black | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 0.525 in | 13.34 mm | Square | 0.1 in | 2.54 mm | 2 | All | Latch Lock/Eject Hooks, Short | Surface Mount | Tin-Lead | |
105 ░C | -55 °C | Header | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Board to Cable/Wire | UL94 V-0 | 1.25 A | Male Pin | Copper Alloy | Solder | 300 µin | 7.62 µm | 2.54 mm | 0.1 in | 34 | Gold | Black | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 0.525 in | 13.34 mm | Square | 0.1 in | 2.54 mm | 2 | All | Latch Lock/Eject Hooks, Short | Surface Mount | Tin | |
105 ░C | -55 °C | Header | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Board to Cable/Wire | UL94 V-0 | 1.25 A | Male Pin | Copper Alloy | Solder | 300 µin | 7.62 µm | 2.54 mm | 0.1 in | 34 | Gold | Black | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 0.525 in | 13.34 mm | Square | 0.1 in | 2.54 mm | 2 | All | Latch Lock/Eject Hooks, Long | Surface Mount | Tin | |
105 ░C | -55 °C | Header | 30 Áin | 0.76 Ám | Shrouded - 4 Wall | Board to Cable/Wire | UL94 V-0 | 1.25 A | Male Pin | Copper Alloy | Solder | 200 µin | 5.08 µm | 2.54 mm | 0.1 in | 34 | Gold | Black | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | 0.525 in | 13.34 mm | Square | 0.1 in | 2.54 mm | 2 | All | Latch Lock/Eject Hooks, Long | Surface Mount | Tin-Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
N4634 Series

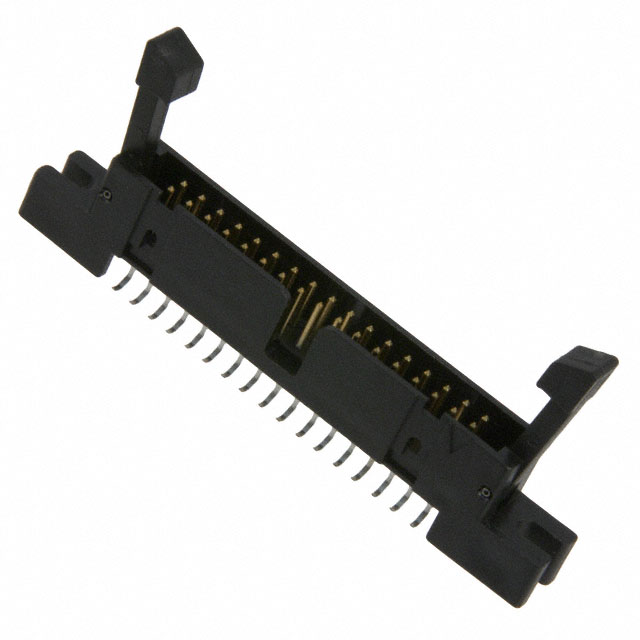

Connector Header Surface Mount 34 position 0.100" (2.54mm)
