N4634-2200RB

Active

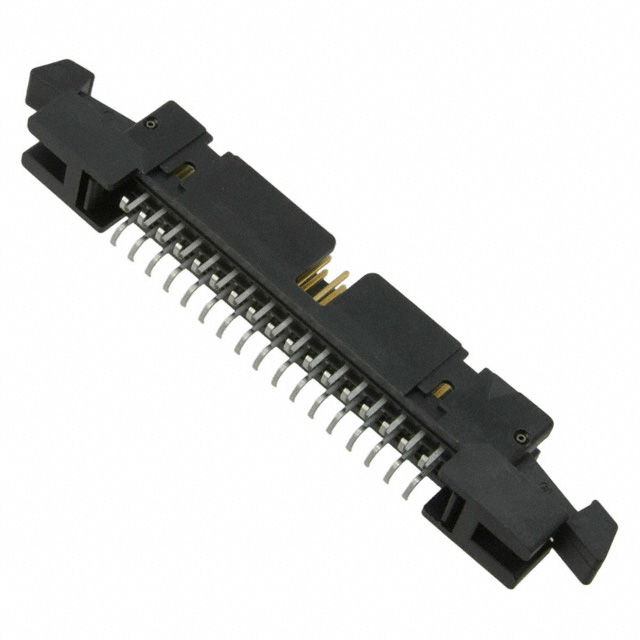

CONN HEADER SMD 34POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

N4634-2200RB

Active

CONN HEADER SMD 34POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N4634-2200RB	N4634 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	300 µin	200 - 300 µin
Contact Finish Thickness - Post	7.62 µm	5.08 - 7.62 µm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short, Latch Lock/Eject Hooks, Long
Insulation Color	Black	Black
Insulation Height	0.525 in	0.525 in
Insulation Height	13.34 mm	13.34 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	34	34
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

N4634 Series

CONN HEADER SMD 34POS 2.54MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Style	Material Flammability Rating	Current Rating (Amps)	Contact Type	Contact Material	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish - Mating	Insulation Color	Insulation Material	Insulation Height	Insulation Height	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Rows	Number of Positions Loaded	Fastening Type	Mounting Type	Contact Finish - Post
3M N4634-2200	105 ░C	-55 °C	Header	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Cable/Wire	UL94 V-0	1.25 A	Male Pin	Copper Alloy	Solder	200 µin	5.08 µm	2.54 mm	0.1 in	34	Gold	Black	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.525 in	13.34 mm	Square	0.1 in	2.54 mm	2	All	Latch Lock/Eject Hooks, Short	Surface Mount	Tin-Lead
3M N4634-2200RB	105 ░C	-55 °C	Header	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Cable/Wire	UL94 V-0	1.25 A	Male Pin	Copper Alloy	Solder	300 µin	7.62 µm	2.54 mm	0.1 in	34	Gold	Black	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.525 in	13.34 mm	Square	0.1 in	2.54 mm	2	All	Latch Lock/Eject Hooks, Short	Surface Mount	Tin
3M N4634-2300RB	105 ░C	-55 °C	Header	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Cable/Wire	UL94 V-0	1.25 A	Male Pin	Copper Alloy	Solder	300 µin	7.62 µm	2.54 mm	0.1 in	34	Gold	Black	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.525 in	13.34 mm	Square	0.1 in	2.54 mm	2	All	Latch Lock/Eject Hooks, Long	Surface Mount	Tin
3M N4634-2300	105 ░C	-55 °C	Header	30 Áin	0.76 Ám	Shrouded - 4 Wall	Board to Cable/Wire	UL94 V-0	1.25 A	Male Pin	Copper Alloy	Solder	200 µin	5.08 µm	2.54 mm	0.1 in	34	Gold	Black	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.525 in	13.34 mm	Square	0.1 in	2.54 mm	2	All	Latch Lock/Eject Hooks, Long	Surface Mount	Tin-Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

N4634 Series

Connector Header Surface Mount 34 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
