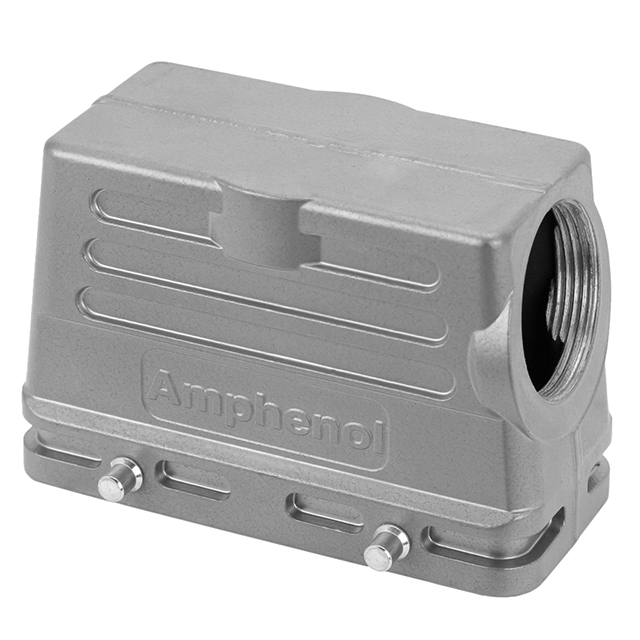

C146 11R016 501 8

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE16 M40

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE16 M40

Technical Specifications

Parameters and characteristics for this part

Specification	C146 11R016 501 8

Connector Type	Hood
Housing Color	Gray
Housing Finish	EMC Coating
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E16
Size / Dimension [x]	3.681 "
Size / Dimension [x]	93.5 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Side Entry

Part	Lock Location	Connector Type	Size	Style	Housing Material	Ingress Protection	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Housing Finish	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Tuchel Industrial C146 11R016 501 8	Locking Clip (2) on Base Bottom	Hood	E16	Side Entry	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	3.681 "	1.693 in	43 mm	93.5 mm	76 mm	2.992 in	EMC Coating	Gray	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 20.63

General part information

Hood Connector Side Entry M40 E16 IP65 - Dust Tight, Water Resistant
