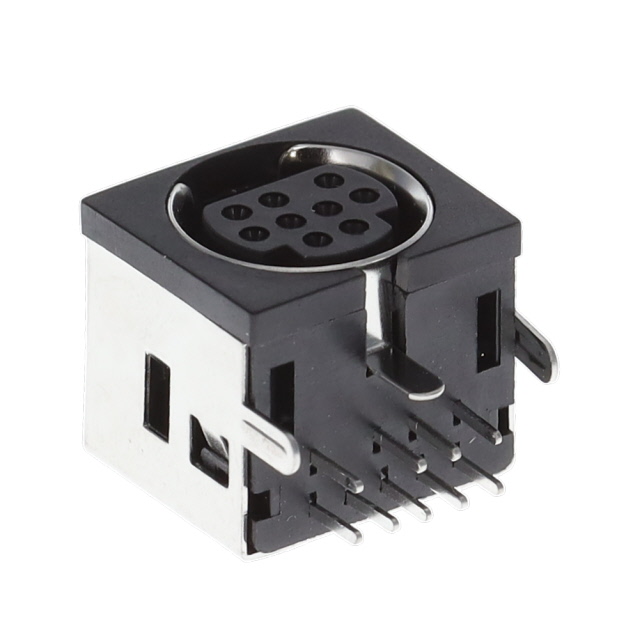

MD-90SM

Active

CUI Devices

CONN CIRCULAR DIN SKT 9 POS SOLDER RA THRU-HOLE 9 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

CUI Devices

CONN CIRCULAR DIN SKT 9 POS SOLDER RA THRU-HOLE 9 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	MD-90SM

Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Features	Ground
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC, 12 V

Part	Number of Positions	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Orientation	Voltage Rating	Shell Size - Insert	Primary Material	Connector Type	Termination	Contact Finish - Mating	Fastening Type	Shielding	Features	Shell Material	Color	Mounting Type
CUI Devices MD-90SM	9	Phosphor Bronze	85 °C	-40 °C	UL94 V-0	Keyed	12 V 100 VAC	Mini DIN	Plastic	Receptacle Female Sockets	Solder	Silver	Push-Pull	Shielded	Ground	Polybutylene Terephthalate (PBT)	Black Silver	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Receptacle, Female Sockets Solder
