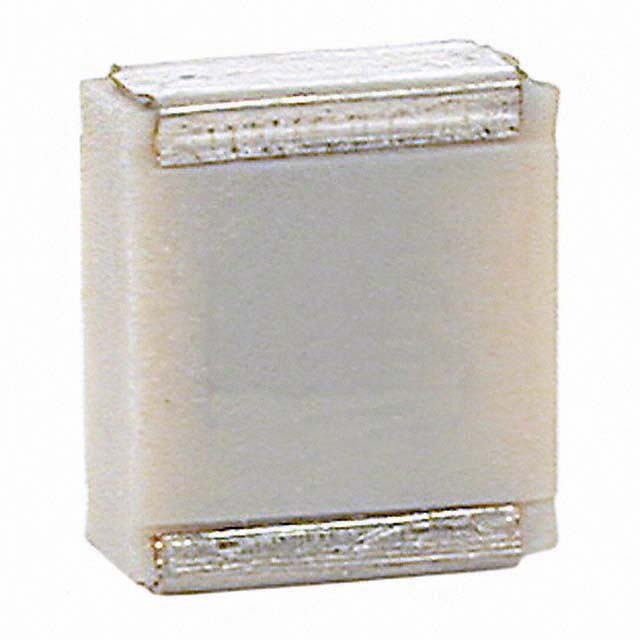

SMC5.7222J100J33TR12

Active

KEMET

CAPACITOR: METALLIZED PPS; 2.2NF; SMD; ±5%; 2220; -55÷125°C; SMC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsF125PP222J100V KEM_F3083_SMC.pdf +1

SMC5.7222J100J33TR12

Active

KEMET

CAPACITOR: METALLIZED PPS; 2.2NF; SMD; ±5%; 2220; -55÷125°C; SMC

Deep-Dive with AI

DocumentsF125PP222J100V KEM_F3083_SMC.pdf +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMC5.7222J100J33TR12

Applications	General Purpose
Capacitance	2200 pF
Dielectric Material	Polyphenylene Sulfide (PPS), Metallized
Features	High Temperature
Height - Seated (Max) [Max] [z]	3.2 mm
Height - Seated (Max) [Max] [z]	0.126 in
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	5750 Metric
Package / Case	2220
Size / Dimension [x]	0.224 in
Size / Dimension [x]	5.7 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Termination	Solder Pads
Tolerance	5 %
Voltage Rating - AC	63 V
Voltage Rating - DC	100 V

SMC5.7 Series

Part	Mounting Type	Capacitance	Tolerance	Termination	Voltage Rating - AC	Features	Package / Case	Package / Case	Voltage Rating - DC	Dielectric Material	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max]
KEMET SMC5.7222J100J33TR12	Surface Mount	2200 pF	5 %	Solder Pads	63 V	High Temperature	5750 Metric	2220	100 V	Polyphenylene Sulfide (PPS) Metallized	General Purpose	-55 °C	125 °C	3.2 mm	0.126 in	0.224 in	5.7 mm	5 mm	0.197 "
KEMET SMC5.7102J50J33TR12	Surface Mount	0.001 µF	5 %	Solder Pads	30 V	High Temperature	5750 Metric	2220	50 VDC	Polyphenylene Sulfide (PPS) Metallized	General Purpose	-55 °C	125 °C	3.2 mm	0.126 in	0.224 in	5.7 mm	5 mm	0.197 "
KEMET SMC5.7473J50J33TR12	Surface Mount		5 %	Solder Pads	30 V	High Temperature	5750 Metric	2220	50 VDC	Polyphenylene Sulfide (PPS) Metallized	General Purpose	-55 °C	125 °C			0.224 in	5.7 mm	5 mm	0.197 "	3 mm	0.118 in
KEMET SMC5.7472J50J33TR12	Surface Mount	4700 pF	5 %	Solder Pads	30 V	High Temperature	5750 Metric	2220	50 VDC	Polyphenylene Sulfide (PPS) Metallized	General Purpose	-55 °C	125 °C	3.2 mm	0.126 in	0.224 in	5.7 mm	5 mm	0.197 "
KEMET SMC5.7152J50J33TR12	Surface Mount	1500 pF	5 %	Solder Pads	30 V	High Temperature	5750 Metric	2220	50 VDC	Polyphenylene Sulfide (PPS) Metallized	General Purpose	-55 °C	125 °C	3.2 mm	0.126 in	0.224 in	5.7 mm	5 mm	0.197 "
KEMET SMC5.7333J50J33TR12	Surface Mount	0.033 çF	5 %	Solder Pads	30 V	High Temperature	5750 Metric	2220	50 VDC	Polyphenylene Sulfide (PPS) Metallized	General Purpose	-55 °C	125 °C	3.2 mm	0.126 in	0.224 in	5.7 mm	5 mm	0.197 "
KEMET SMC5.7104J50J35TR12	Surface Mount	100000 pF	5 %	Solder Pads	30 V	High Temperature	5750 Metric	2220	50 VDC	Polyphenylene Sulfide (PPS) Metallized	General Purpose	-55 °C	125 °C			0.224 in	5.7 mm	5 mm	0.197 "	4.2 mm	0.165 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2400	$ 1.39
Newark	Each (Supplied on Full Reel)	2000	$ 1.63
		4000	$ 1.47
		6000	$ 1.41
		10000	$ 1.36
TME	N/A	1	$ 3.21
		10	$ 2.29
		100	$ 1.78
		600	$ 1.24

Description

General part information

SMC5.7 Series

2200 pF Film Capacitor 63V 100V Polyphenylene Sulfide (PPS), Metallized 2220 (5750 Metric)
