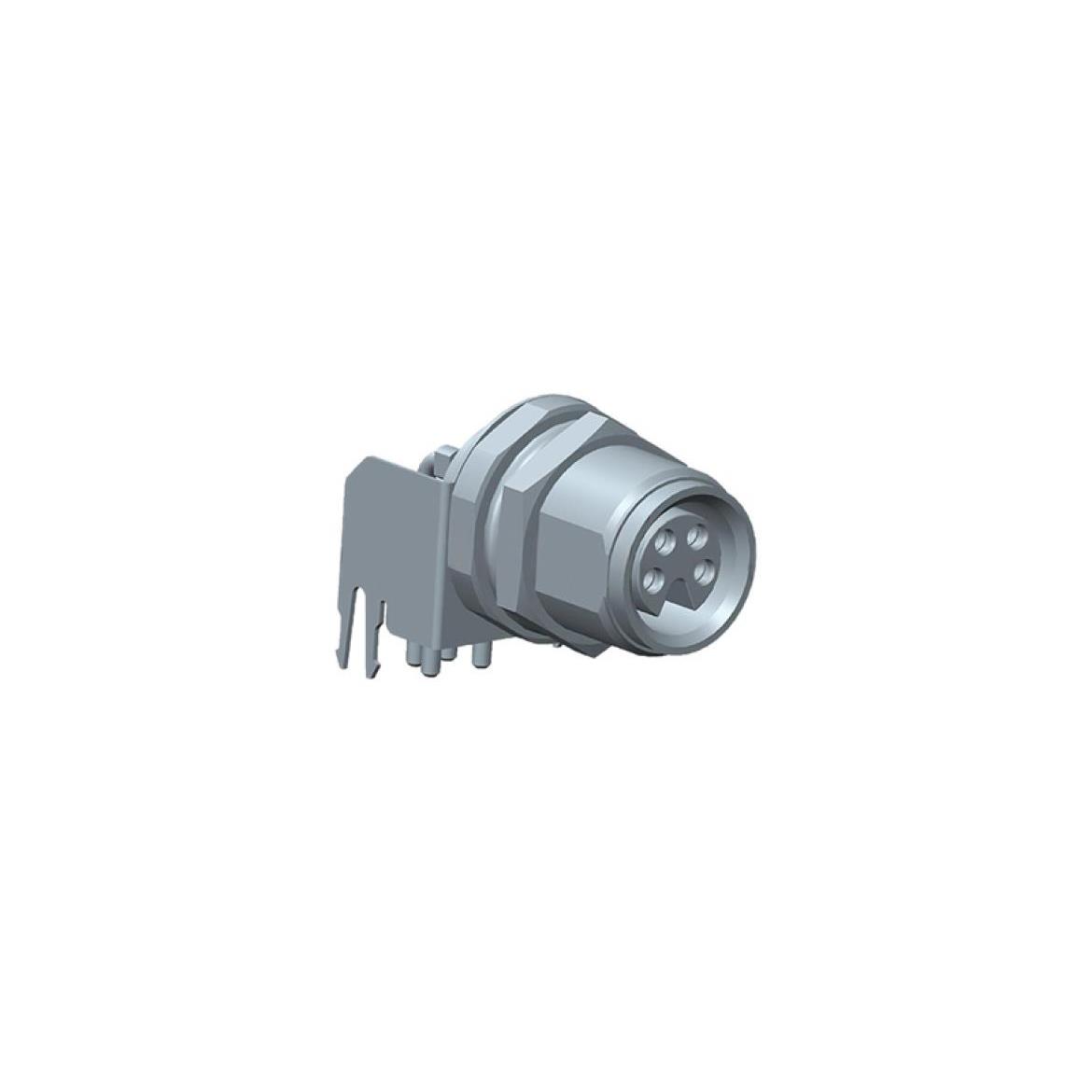

M8AS-03PFFR-SF8001
ActiveSENSOR CONNECTOR, M SERIES, M8, RECEPTACLE, 3 CONTACTS, PCB SOCKET, RIGHT ANGLE PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
M8AS-03PFFR-SF8001
ActiveSENSOR CONNECTOR, M SERIES, M8, RECEPTACLE, 3 CONTACTS, PCB SOCKET, RIGHT ANGLE PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M8AS-03PFFR-SF8001 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Features | Ground, Board Lock |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Metal |
| Shell Size - Insert | M8-3 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M8AS-03PFFR Series
The M8AS-03PFFR-SF8001 from Amphenol LTW is M series sensor connector. This M8 size with key, shielded connector for panel mount meets the most demanding needs in factory automation applications. M-series is perfectly suitable for industrial equipment, machinery and automation that offer safety in harsh environmental conditions including corrosion, shock vibration, dust, moisture build-up and extremely adverse installation situations.
