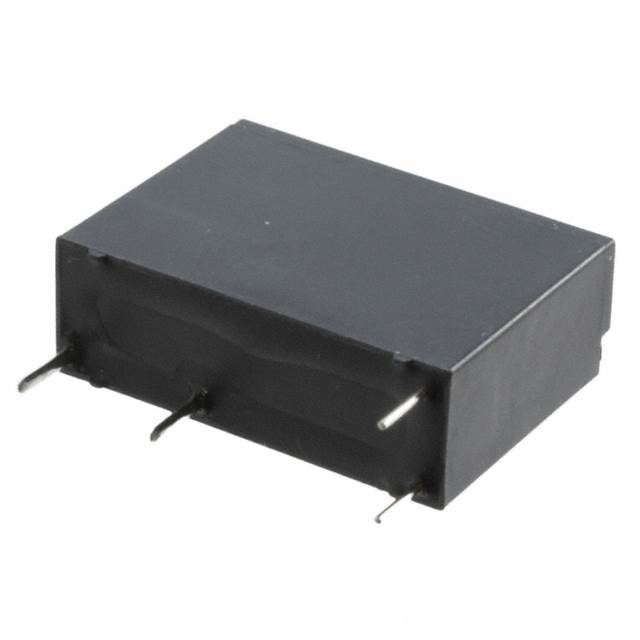

ALDP105W

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 5A 5V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 5A 5V

Technical Specifications

Parameters and characteristics for this part

Part	Load - Max Switching	Release Time	Contact Rating (Current)	Coil Insulation	Relay Type	Mounting Type	Coil Type	Contact Form	Must Operate Voltage	Contact Material	Operate Time	Termination Style	Must Release Voltage	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Switching Voltage [Max]	Coil Voltage	Coil Resistance
Panasonic Electric Works ALDP109	1385 VA	10 ms	5 A	Class E	General Purpose	Through Hole	Non Latching	SPST-NO (1 Form A)	6.75 VDC	Silver Nickel (AgNi)	10 ms	PC Pin	0.45 VDC	22.2 mA	85 °C	-40 °C	CQC cURuus VDE	277 VAC	9 VDC	405 Ohms
Panasonic Electric Works ALDP105W	1385 VA	10 ms	5 A	Class E	General Purpose	Through Hole	Non Latching	SPST-NO (1 Form A)	3.75 VDC	Silver Nickel (AgNi)	10 ms	PC Pin	0.25 VDC	40 mA	85 °C	-40 °C	CQC cURuus VDE	277 VAC	5 VDC	125 Ohms
Panasonic Electric Works ALDP105	1385 VA	10 ms	5 A	Class E	General Purpose	Through Hole	Non Latching	SPST-NO (1 Form A)	3.75 VDC	Silver Nickel (AgNi)	10 ms	PC Pin	0.25 VDC	40 mA	85 °C	-40 °C	CQC cURuus VDE	277 VAC	5 VDC	125 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
