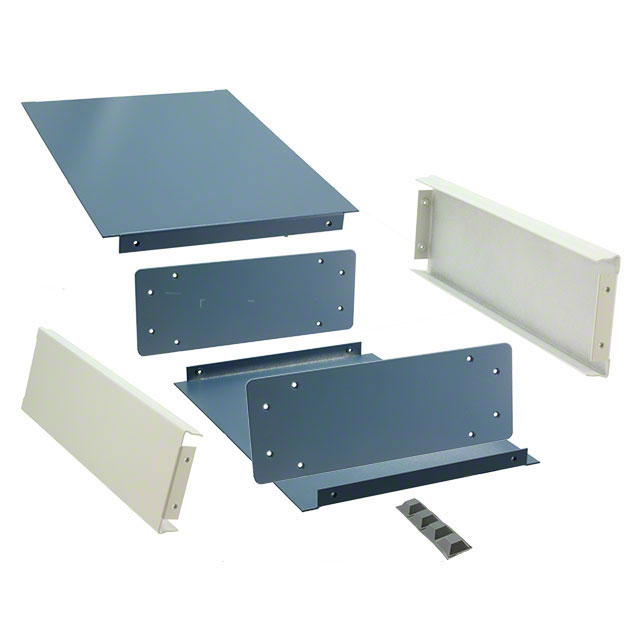

UPS 7-17-14-BLUE/WHITE

Active

LMB Heeger Inc.

CABINET ALUM 16.75"L X 13.88"W

Search across all available documentation for this part.

Active

LMB Heeger Inc.

CABINET ALUM 16.75"L X 13.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	UPS 7-17-14-BLUE/WHITE

Area (L x W)	232 in²
Area (L x W)	1497 cm²
Color	Blue, White
Container Type	Cabinet
Design	End Panel(s)
Features	Separate Panel or Cover Thickness
Height [z]	173.05 mm
Height [z]	6.813 "
Material	Metal, Aluminum
Size / Dimension [x]	16.75 "
Size / Dimension [x]	425.45 mm
Size / Dimension [y]	13.875 in
Size / Dimension [y]	352.43 mm
Thickness	0.063 "
Thickness	1.6 mm

Part	Area (L x W)	Area (L x W)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Container Type	Design	Material	Features	Height [z]	Height [z]	Color	Thickness	Thickness
LMB Heeger Inc. UPS 7-17-14 PLAIN	232 in²	1497 cm²	16.75 "	425.45 mm	13.875 in	352.43 mm	Cabinet	End Panel(s)	Aluminum Metal	Separate Panel or Cover Thickness	173.05 mm	6.813 "	Unpainted	0.063 "	1.6 mm
LMB Heeger Inc. UPS 7-17-14-BLUE/WHITE	232 in²	1497 cm²	16.75 "	425.45 mm	13.875 in	352.43 mm	Cabinet	End Panel(s)	Aluminum Metal	Separate Panel or Cover Thickness	173.05 mm	6.813 "	Blue White	0.063 "	1.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cabinet Metal, Aluminum Blue, White End Panel(s) 16.750" L x 13.875" W (425.45mm x 352.43mm) X 6.813" (173.05mm)

Technical documentation and resources

No documents available
