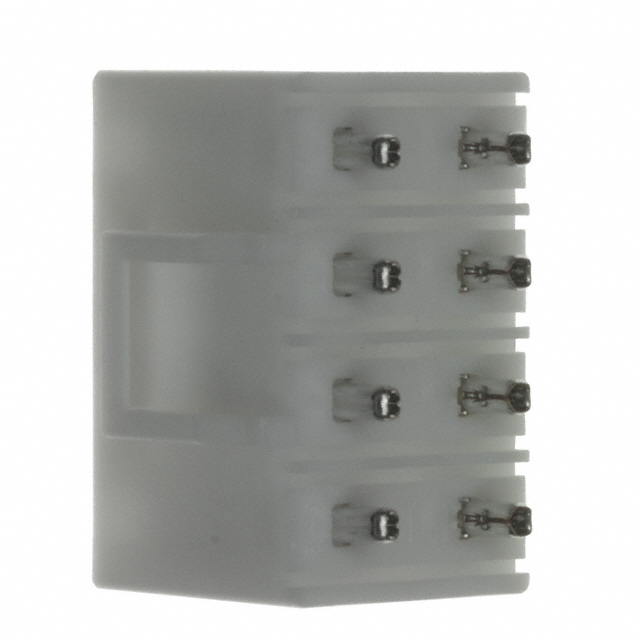

Specification	B08P-VL

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.142 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	20 A
Fastening Type	Latch Holder
Insulation Color	Natural
Insulation Height	0.646 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Height	29.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.244 in
Row Spacing - Mating	0.326 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	600 V

B08P Series

Part	Contact Finish - Mating	Row Spacing - Mating	Features	Number of Positions	Insulation Color	Material Flammability Rating	Insulation Material	Termination	Contact Material	Fastening Type	Voltage Rating	Number of Positions Loaded	Connector Type	Current Rating	Contact Shape	Number of Rows	Shrouding	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Contact Finish - Post	Pitch - Mating	Mounting Type	Style	Insulation Height	Contact Length - Post	Mated Stacking Height
JST Sales America Inc. B08P-HL-A	Tin	0.156 in	Board Guide	8	Natural	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Solder	Brass	Latch Holder	300 VAC/DC	All	Header	7 A	Rectangular	2	Shrouded - 4 Wall	-25 °C	90 °C	Male Pin	Tin	0.156 in	Through Hole	Board Cable/Wire
JST Sales America Inc. B08P-VL	Tin	0.326 in		8	Natural	UL94 V-0	Nylon 6/6 Polyamide (PA66)	Solder	Copper Alloy	Latch Holder	600 V	All	Header	20 A	Square	2	Shrouded - 4 Wall	-25 °C	90 °C	Male Pin	Tin	0.244 in	Through Hole	Board Cable/Wire	0.646 in	0.142 in	29.2 mm
